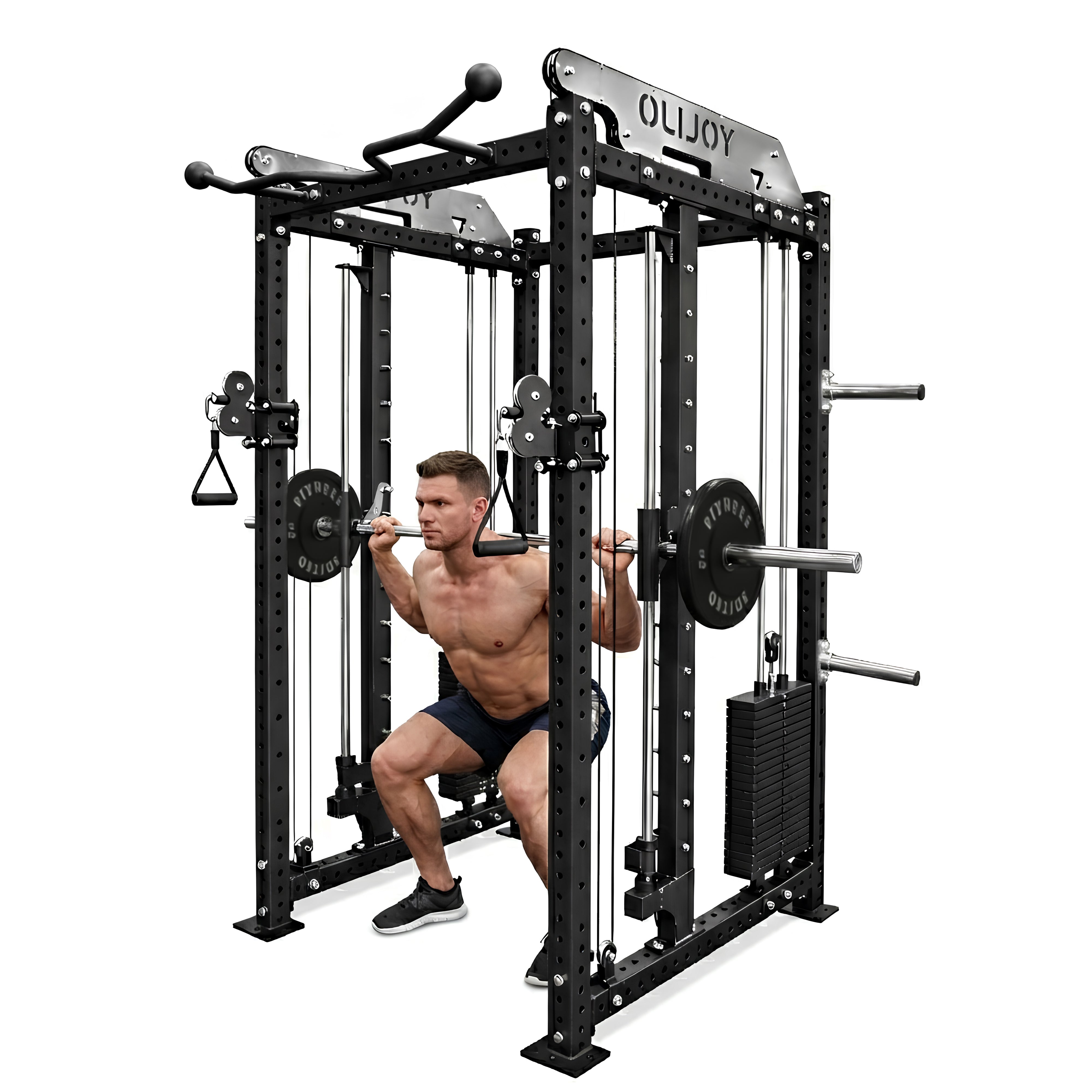

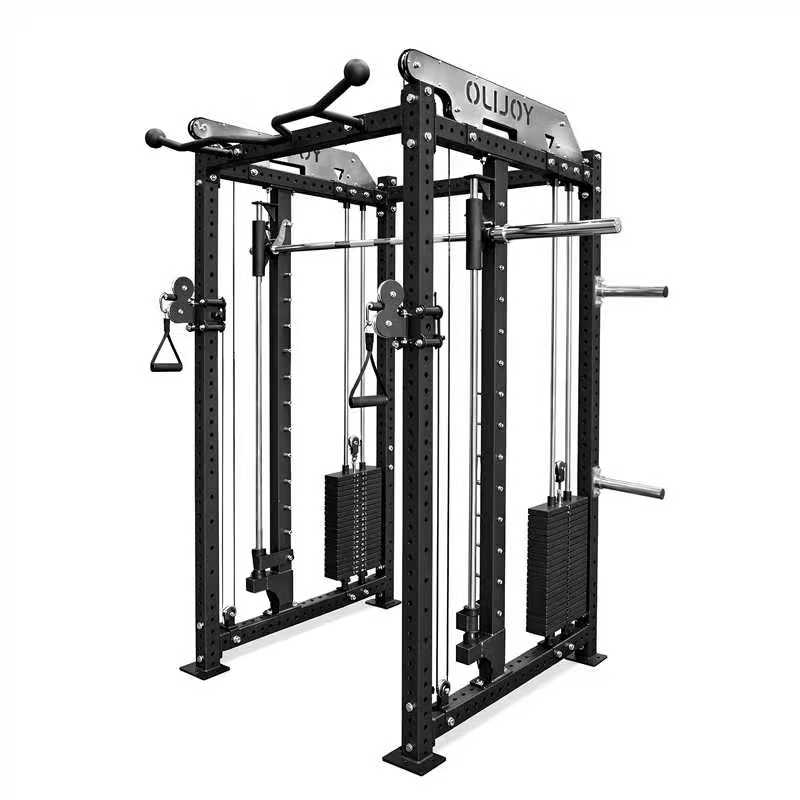

OLIJOY Dual Stack Smith & Functional Trainer Power Rack
Structured Strength. Controlled Bar Path. Real Cable Resistance.
The OLIJOY Dual Stack Smith & Functional Trainer is a heavy-duty hybrid strength system integrating a non-counterbalanced Smith machine, dual independent cable stacks, and front rack functionality into one unified commercial frame.
This system is built for structured strength environments that require mechanical consistency, progressive overload, and space efficiency — without pretending to replace dedicated free-weight platforms.
Training Role
This machine is not designed to replace barbell squats, Olympic lifting, or open-platform strength work.
It is designed to:
- Provide a guided 20kg Smith bar path for controlled compound lifting
- Deliver consistent 2:1 pulley cable resistance for hypertrophy and accessory work
- Allow optional rack-based barbell training with J-hooks and safety arms
- Support unilateral training through dual independent weight stacks
Used correctly, it functions as a hybrid strength station — not a shortcut.
Core System Components

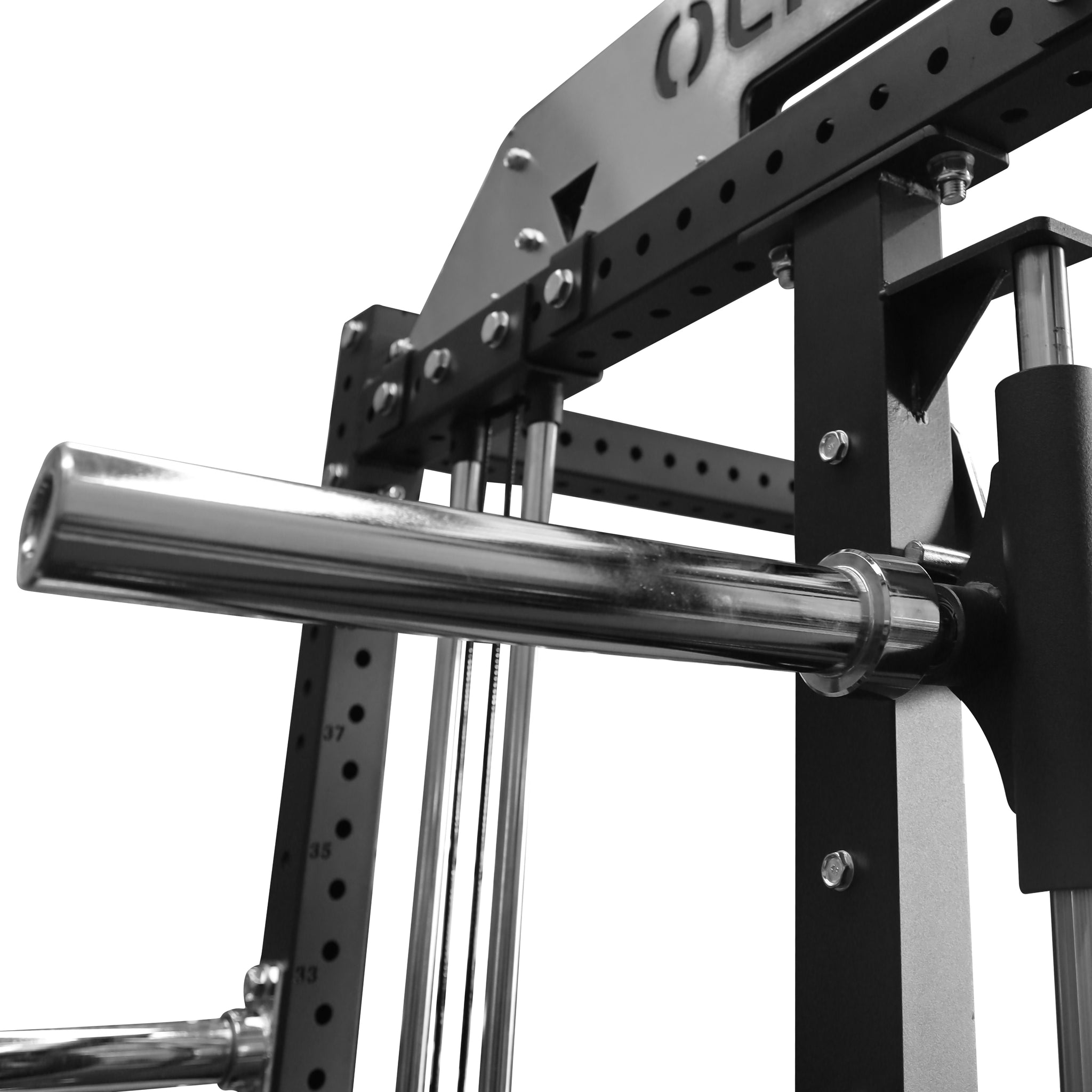

Smith Machine (Non-Counterbalanced)
- 20kg starting bar weight
- No counterbalance — true load from first repetition
- Multi-position safety hooks
- Linear guide rods for smooth vertical tracking
- Suitable for squats, presses, and controlled compound lifts
The absence of counterbalance means resistance begins immediately. This is intentional. It ensures predictable loading and honest progression.

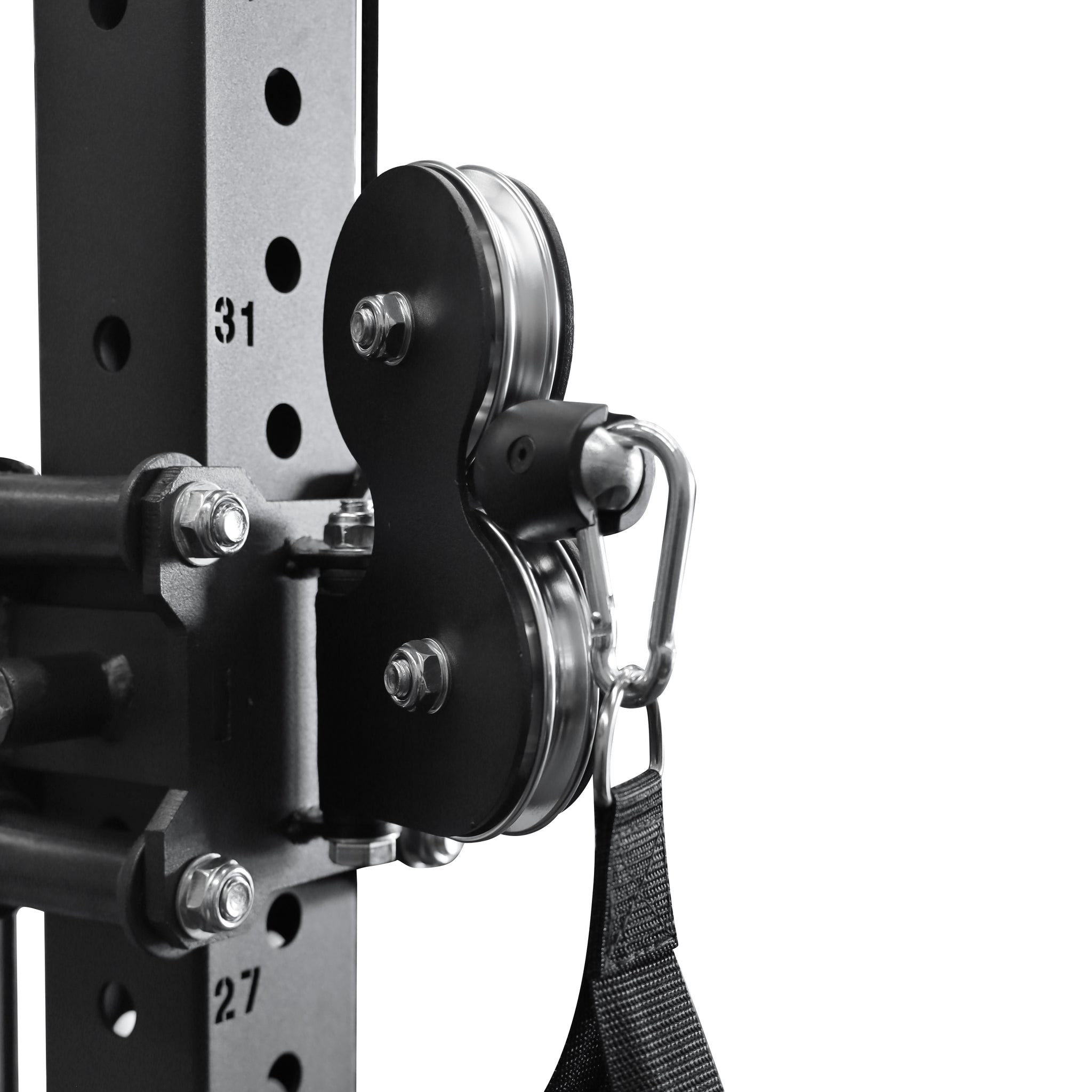

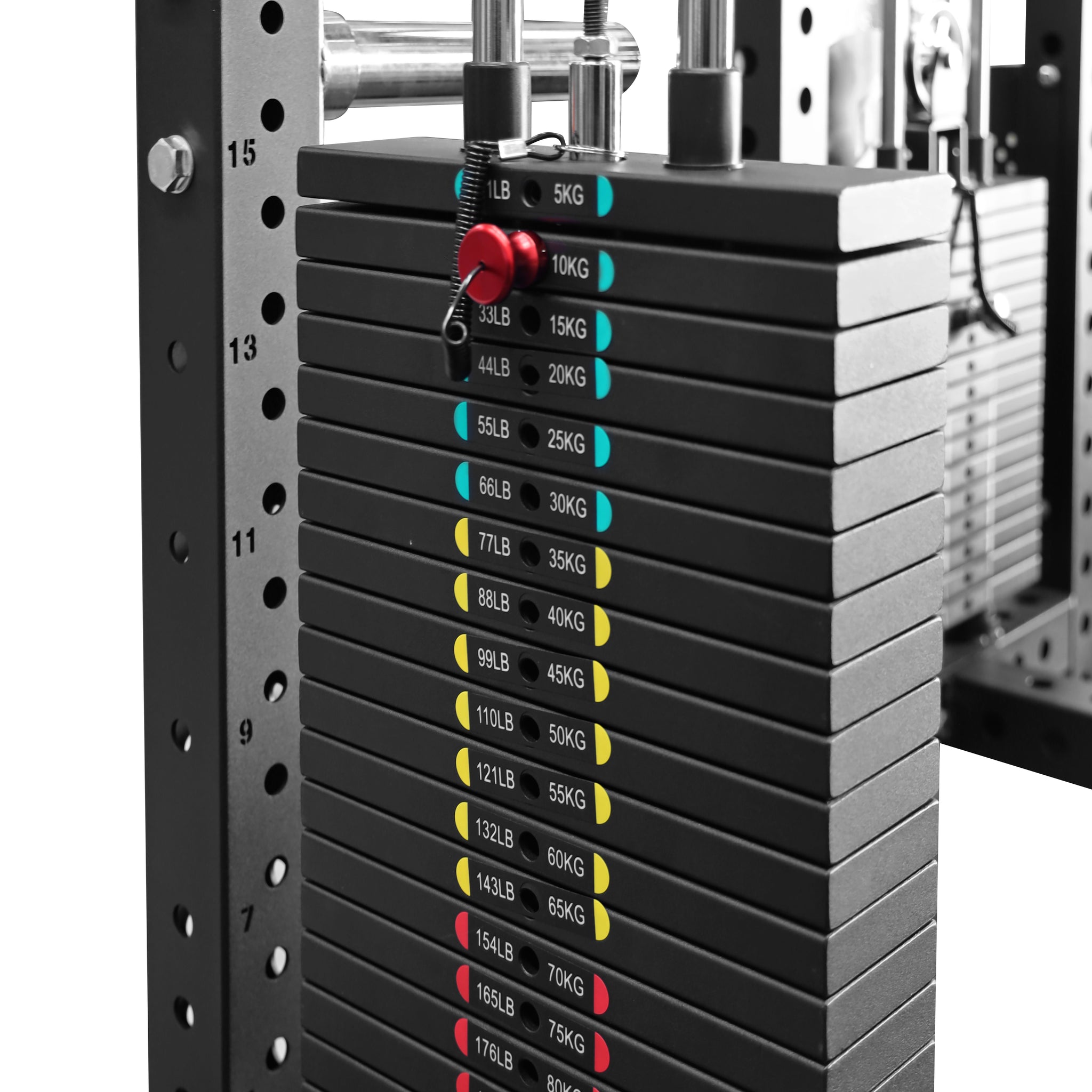

Dual Independent Weight Stacks
- 2 × 100kg weight stacks
- 5kg increments per plate
- 2:1 pulley ratio
- Independent left and right loading
The 2:1 ratio provides smoother cable travel and extended range of motion while maintaining consistent tension across the working range.
Front Rack Compatibility
The front uprights allow optional:
- J-hooks
- Safety arms
- Landmine attachment
- Lat pulldown bar
- Low row foot plate
These are sold separately and allow facilities to configure the system according to training needs.

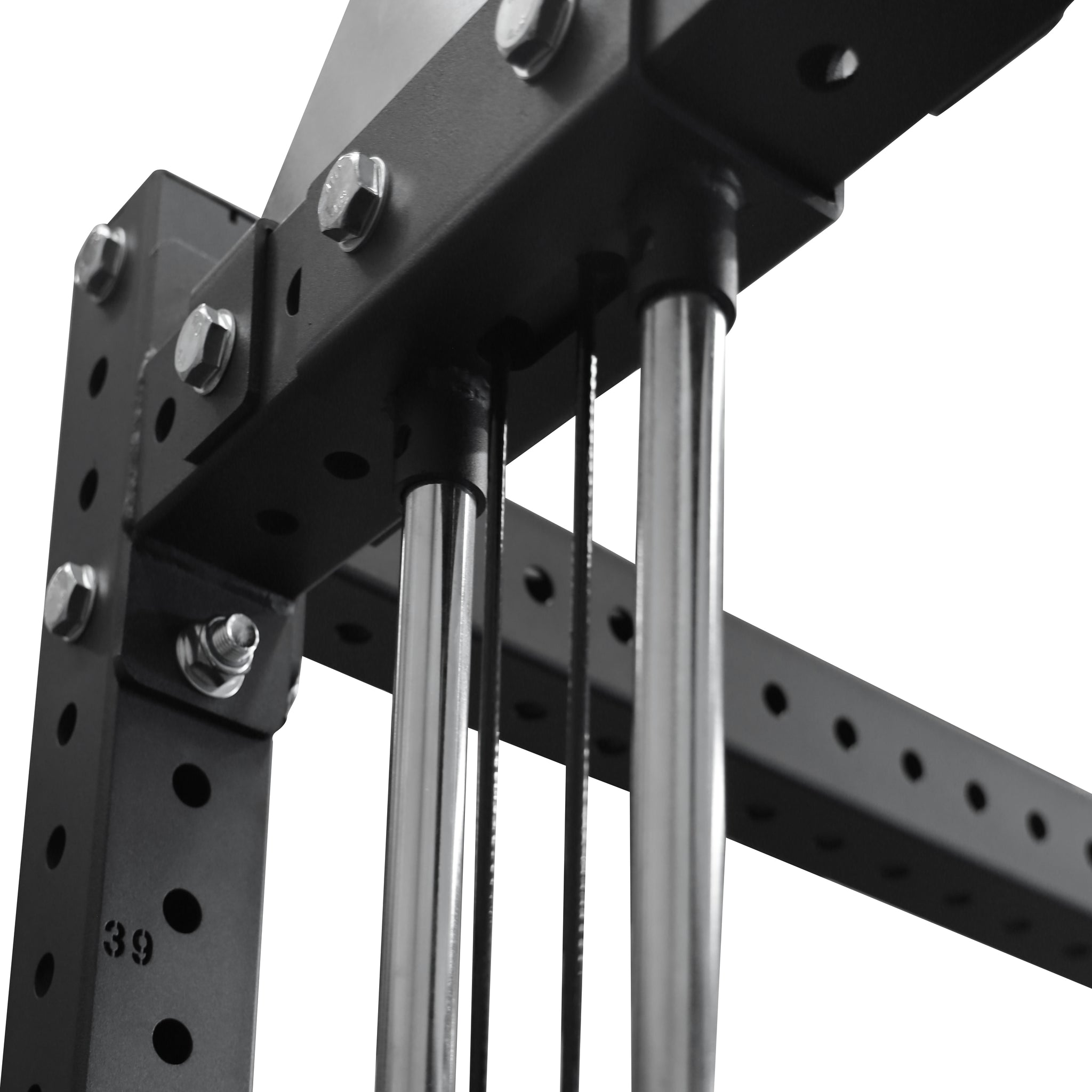

Frame & Construction
- 75 × 75 × 3mm commercial-grade steel uprights
- Powder-coated matte black finish
- Full commercial structural design
- Machine weight: 350kg+
Built for medium-to-high frequency commercial usage when properly installed.
Dimensions
- Frame Height: 240cm
- Frame Width: 130cm
- Frame Depth: 120cm
- Smith Bar Length: 220cm (affects total lateral clearance)
Ensure adequate side clearance due to full-length Olympic bar integration.
Best Suited For
- Commercial gyms requiring a hybrid strength station
- PT studios offering structured progression
- Facilities with space constraints but full programming demands
- Serious home users with adequate ceiling height
Not Intended For
- Olympic weightlifting or bar dropping
- Explosive dynamic barbell movements
- Replacing full competition power racks
Frequently Asked Questions
Is the Smith bar counterbalanced?
No. The Smith bar starts at 20kg and is not counterbalanced. Resistance begins immediately.
What is the pulley ratio?
The system operates on a 2:1 pulley ratio for smoother cable travel and extended range.
Can both arms be trained independently?
Yes. Each side has its own 100kg weight stack, allowing unilateral training.
Can this replace a full power rack?
No. It supports rack-based training but does not replace open-platform strength work.
Is this suitable for heavy commercial use?
Yes, when properly installed and maintained within its design limits.
Summary
The OLIJOY Dual Stack Smith & Functional Trainer is not designed to do everything.
It is designed to integrate guided compound lifting, true cable resistance, and optional rack functionality into one stable, mechanically honest system.
For facilities that understand its role within structured programming, it delivers efficiency, durability, and controlled strength progression.
