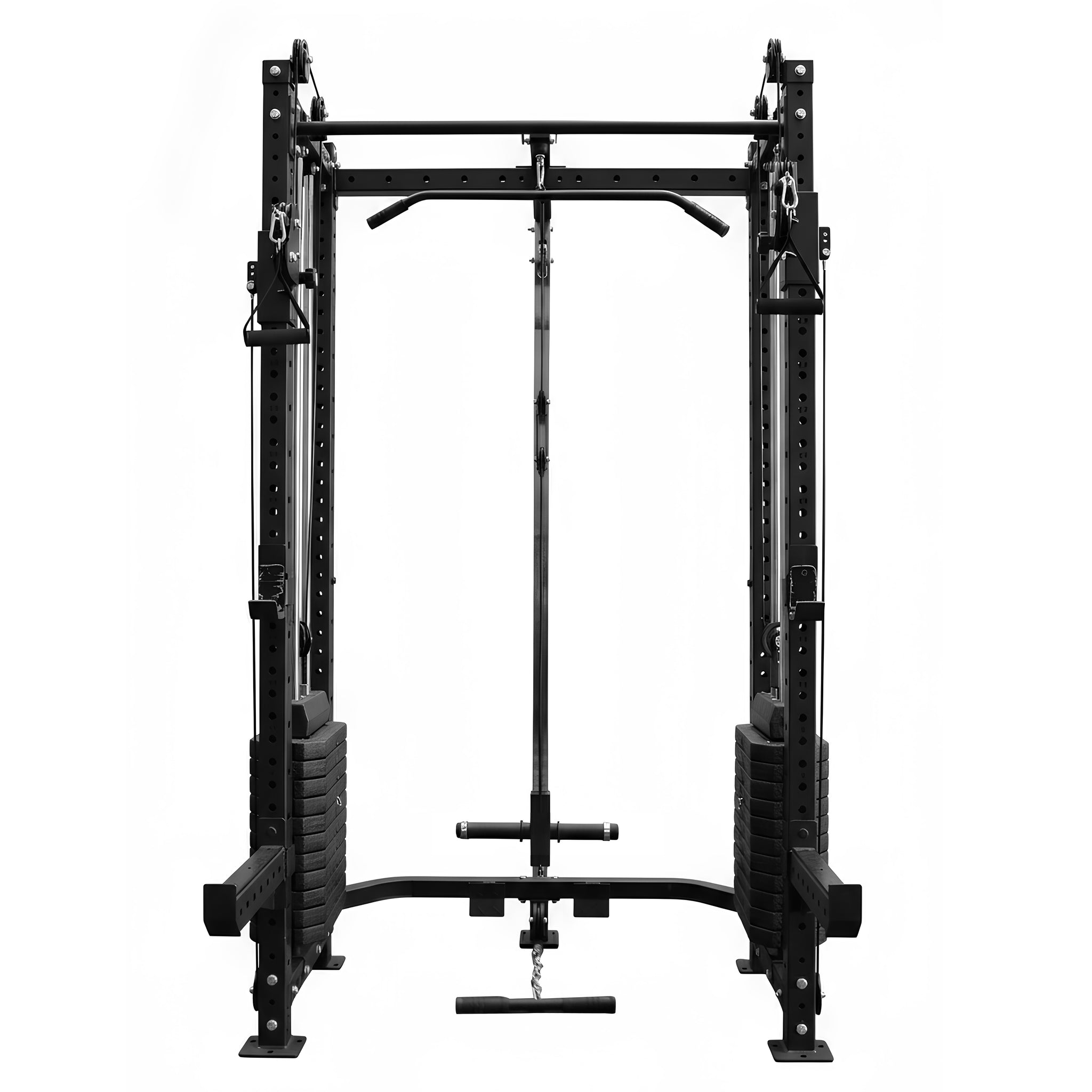

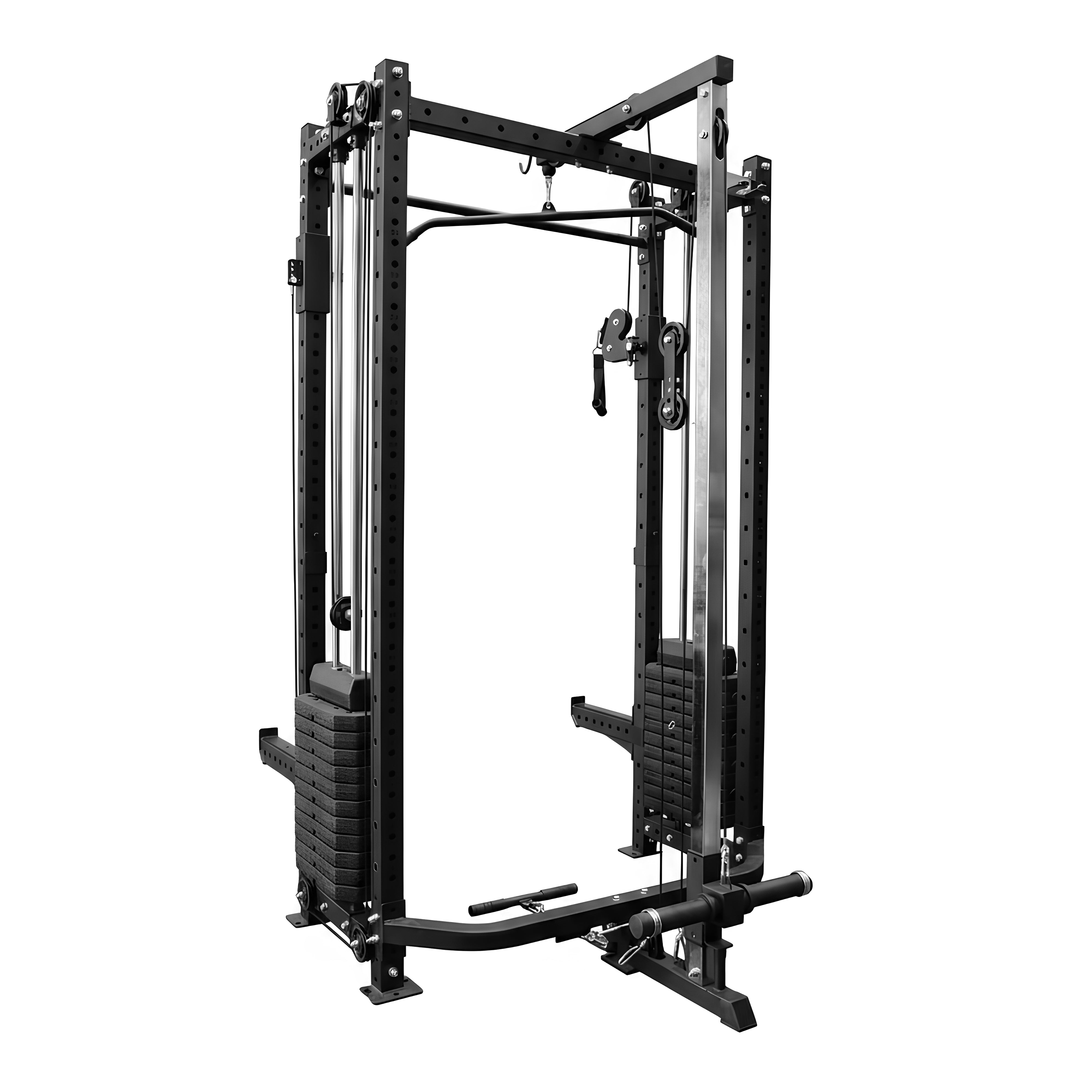

Lat Pulldown Attachment 2.0 Modular Power Rack

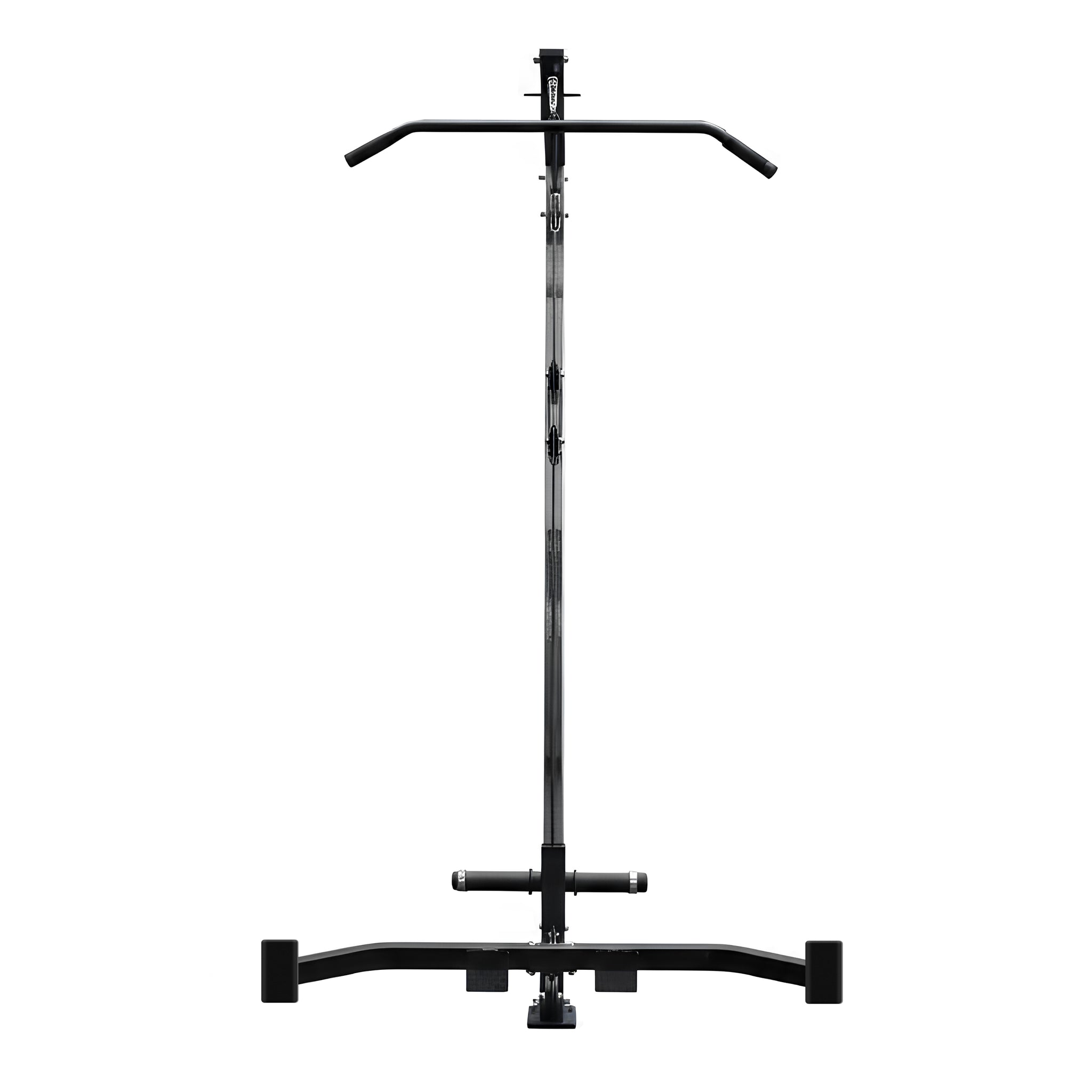

Lat Pulldown Attachment (Plate-Loaded)

This module is the back-side high pulley training unit of the system, designed with a plate-loaded weight stack for vertical pulling exercises targeting the back.

Key Features

• Plate-Loaded Weight Stack
  Built-in plate stack with a pin selector for quick resistance changes, ideal for high-frequency use and multi-user gyms.

• High Pulley Cable System
   Top pulley provides a natural downward pull path, aligning with latissimus dorsi and upper back muscle activation. 1:15 radio


• Low Pulley Cable System
   Bottom pulley allows seated rows and low cable pulls, enabling full back development and functional training.


• Stable Weight Guide Rails
   Dual guide columns ensure smooth weight travel, reduce wobble, and improve training safety and feel.


• Compatible with Multiple Handles
   Supports long bar and straight bar to meet different training needs.


• Integrated Frame Installation
  Fully integrated into the rack-frame structure

Primary Exercises

• Lat Pulldown (High Pulley)


• Seated Row / Low Row (Low Pulley)


• Straight Arm Pulldown


• Face Pull


• Light Resistance Back Training

Specification

• Material: Heavy-duty Q235 steel tubing

• Pulley Ratio: 1:1.5

• Weight Stack: 150 kg

• Product Weight: 23 kg

• Package Weight: 25.5 kg

• Product Dimensions: 1219 × 670 × 2200 mm

• Package size:

  • Box 1: 126 cm (L) × 29 cm (W) × 15.5 cm (H) 19.4KG

  • Box 2: 9 cm (L) × 9 cm (W) × 213 cm (H) 5.1KG


• Colour: Black

• Barcode: 8023

Please click here to download the manual
