Preorder OLI JOY Commercial Pin Loaded Abductor Machine

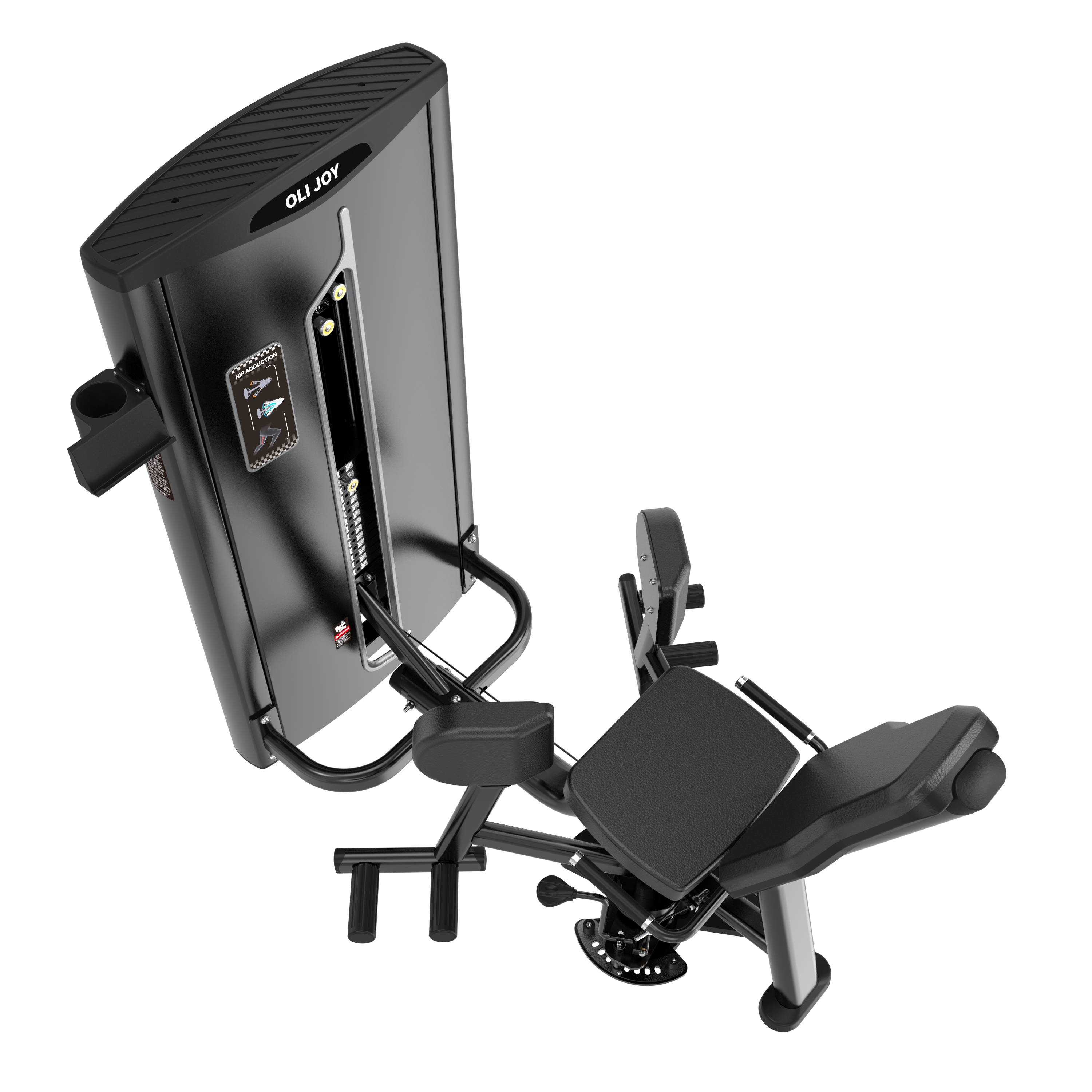

Commercial Pin Loaded Abductor Machine

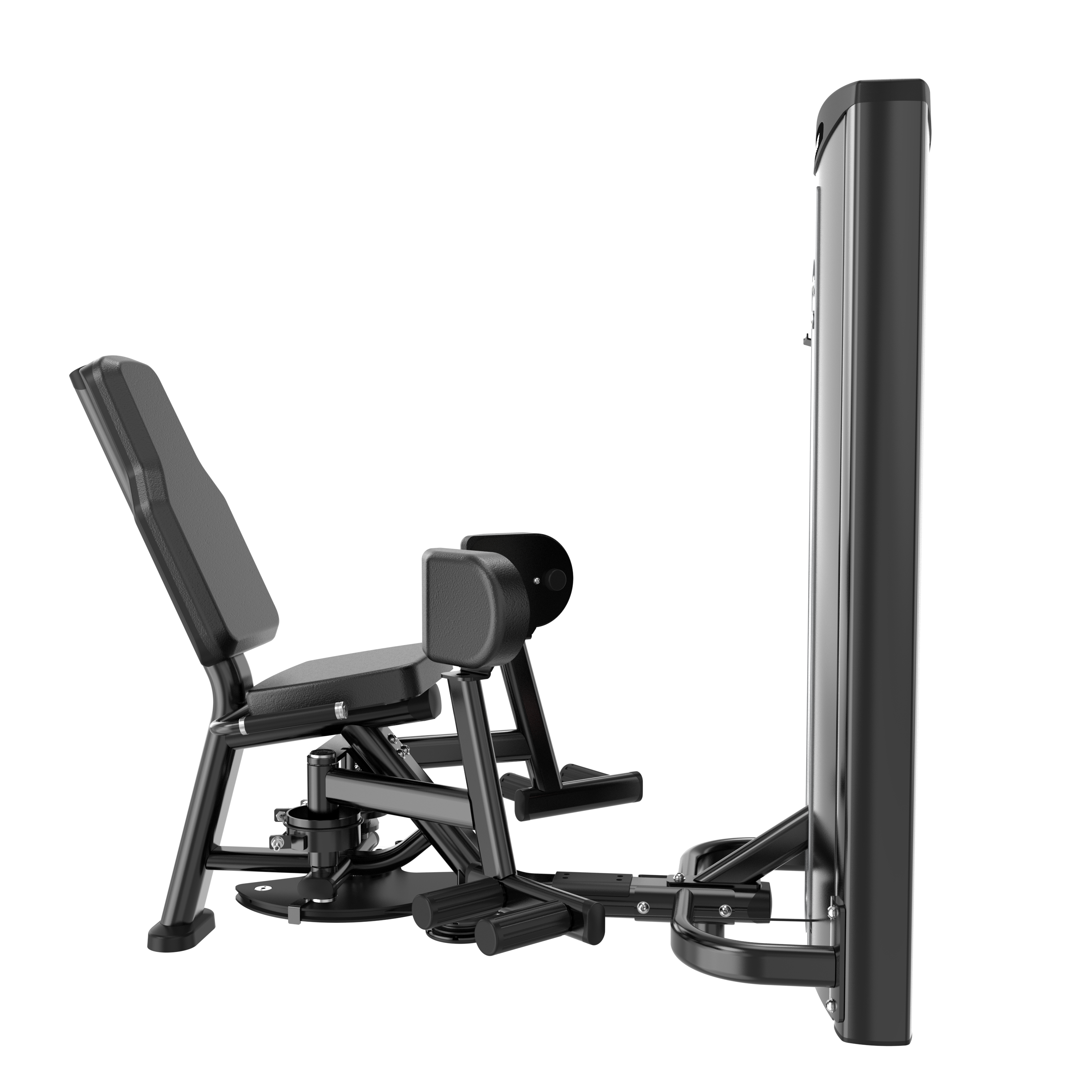

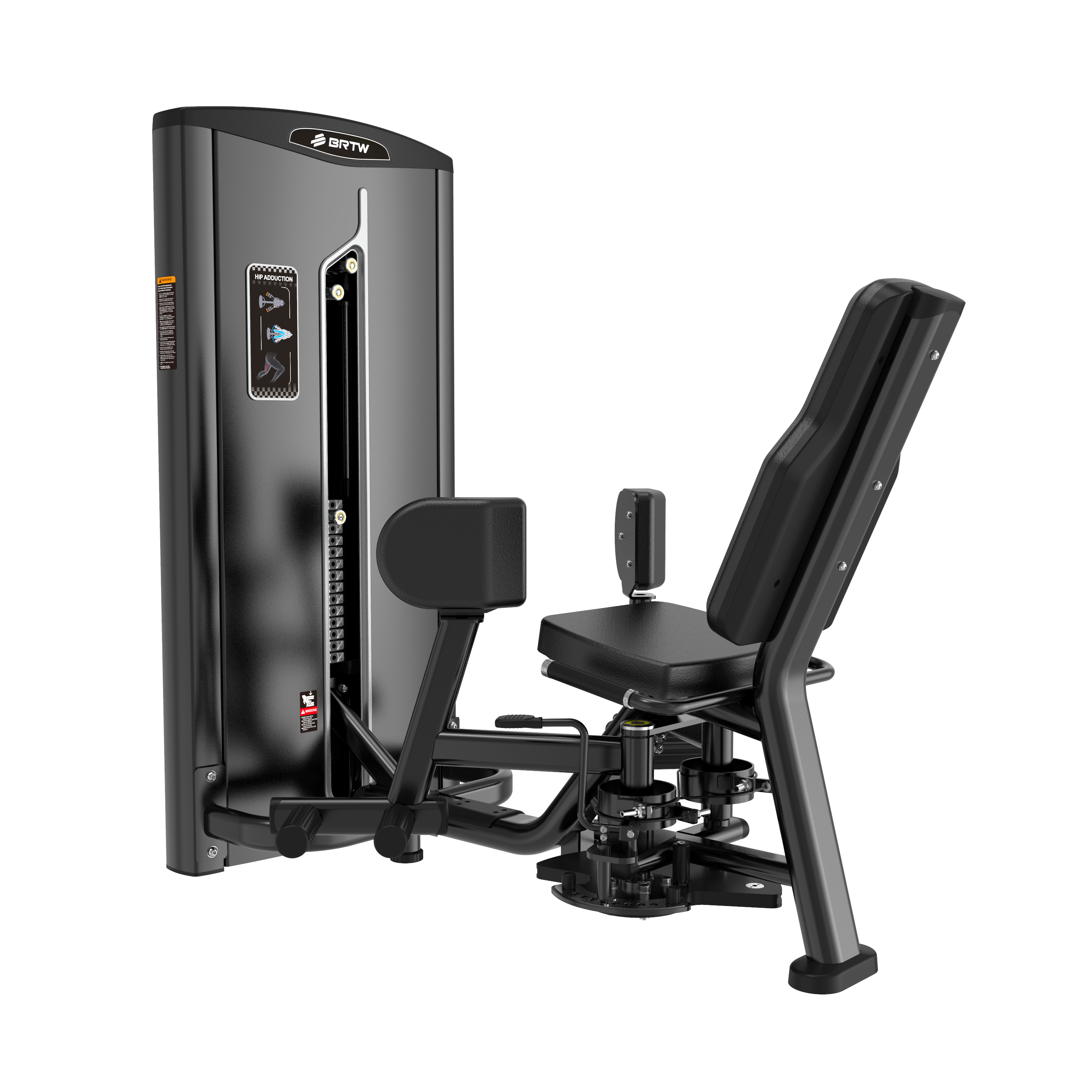

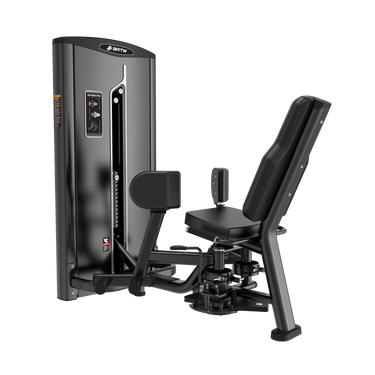

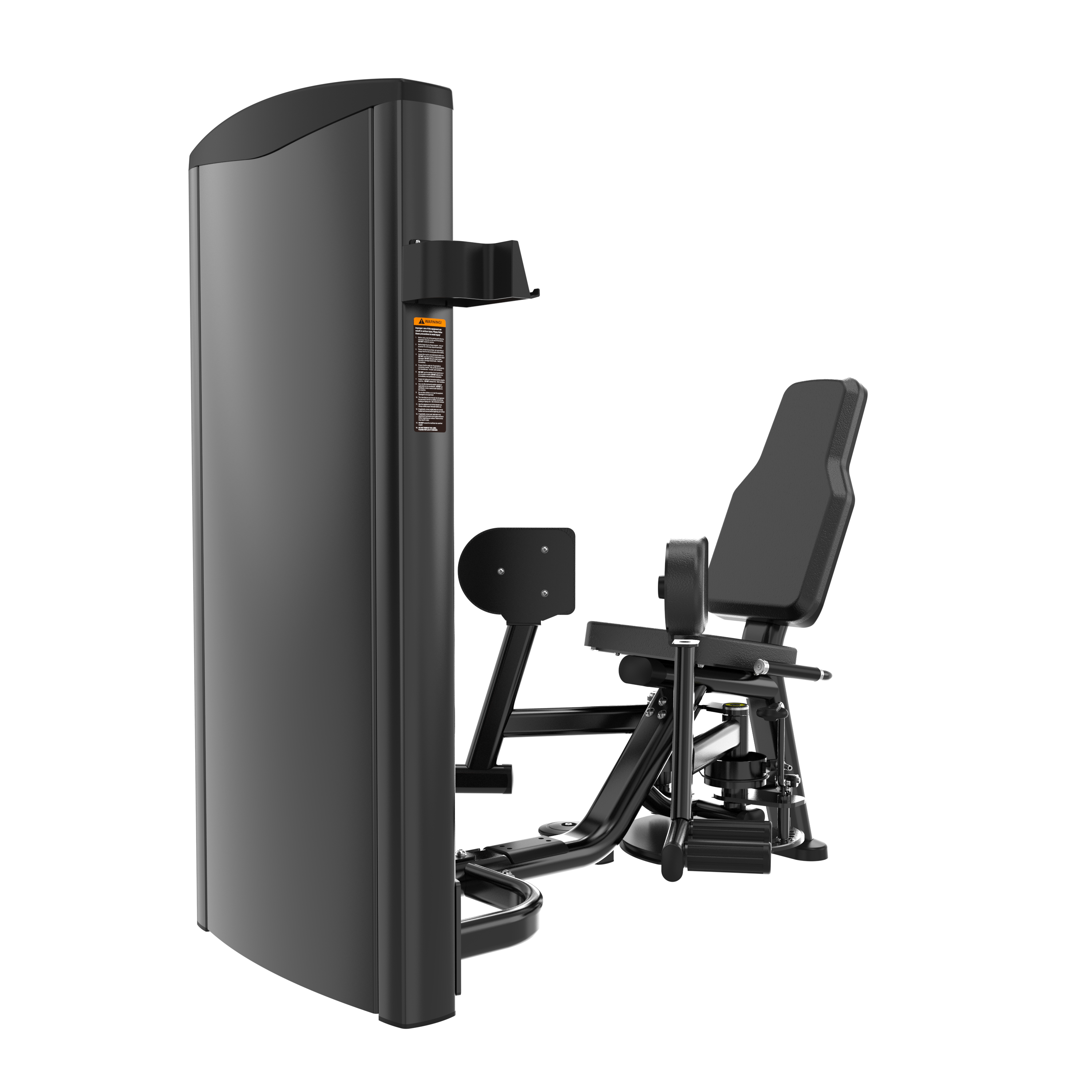

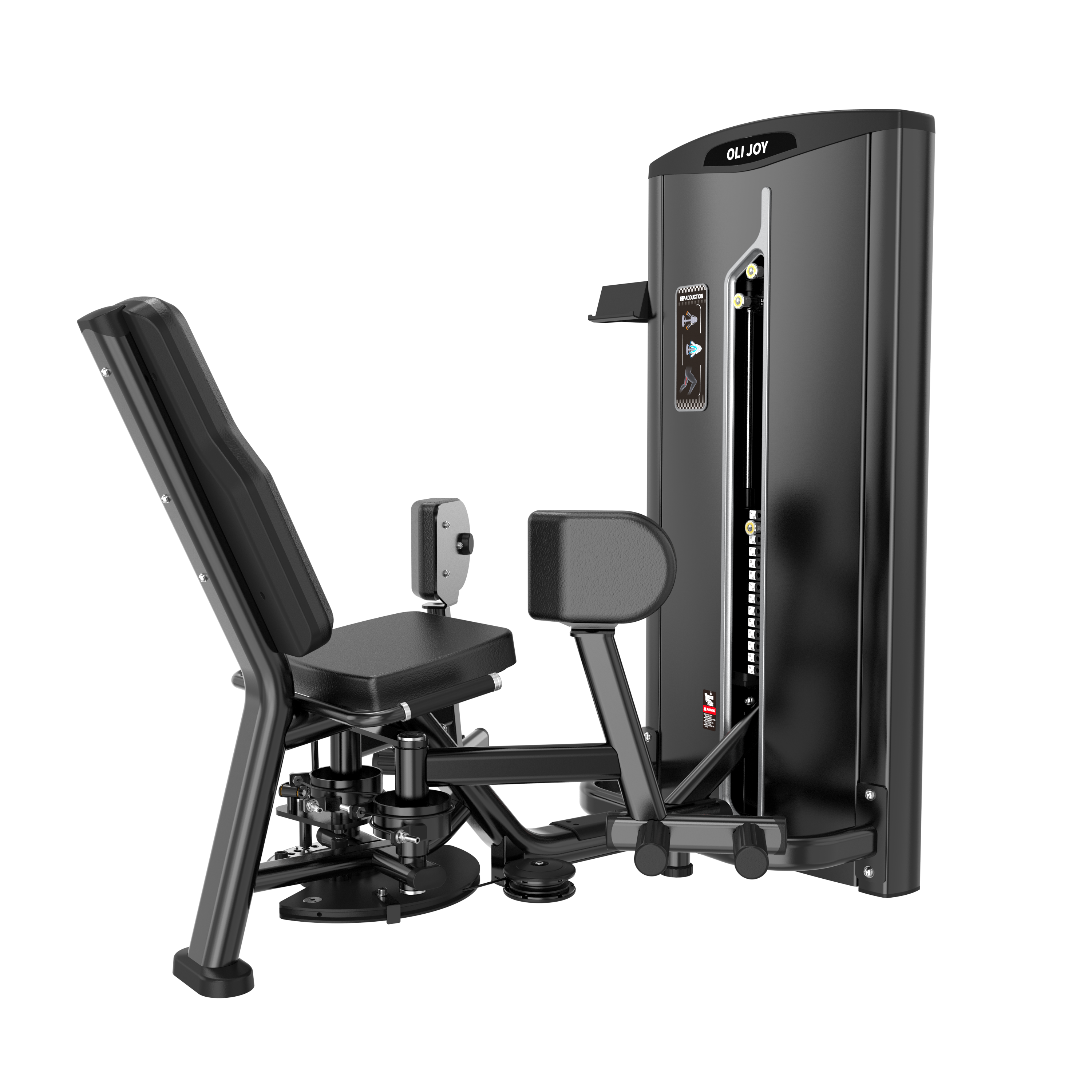

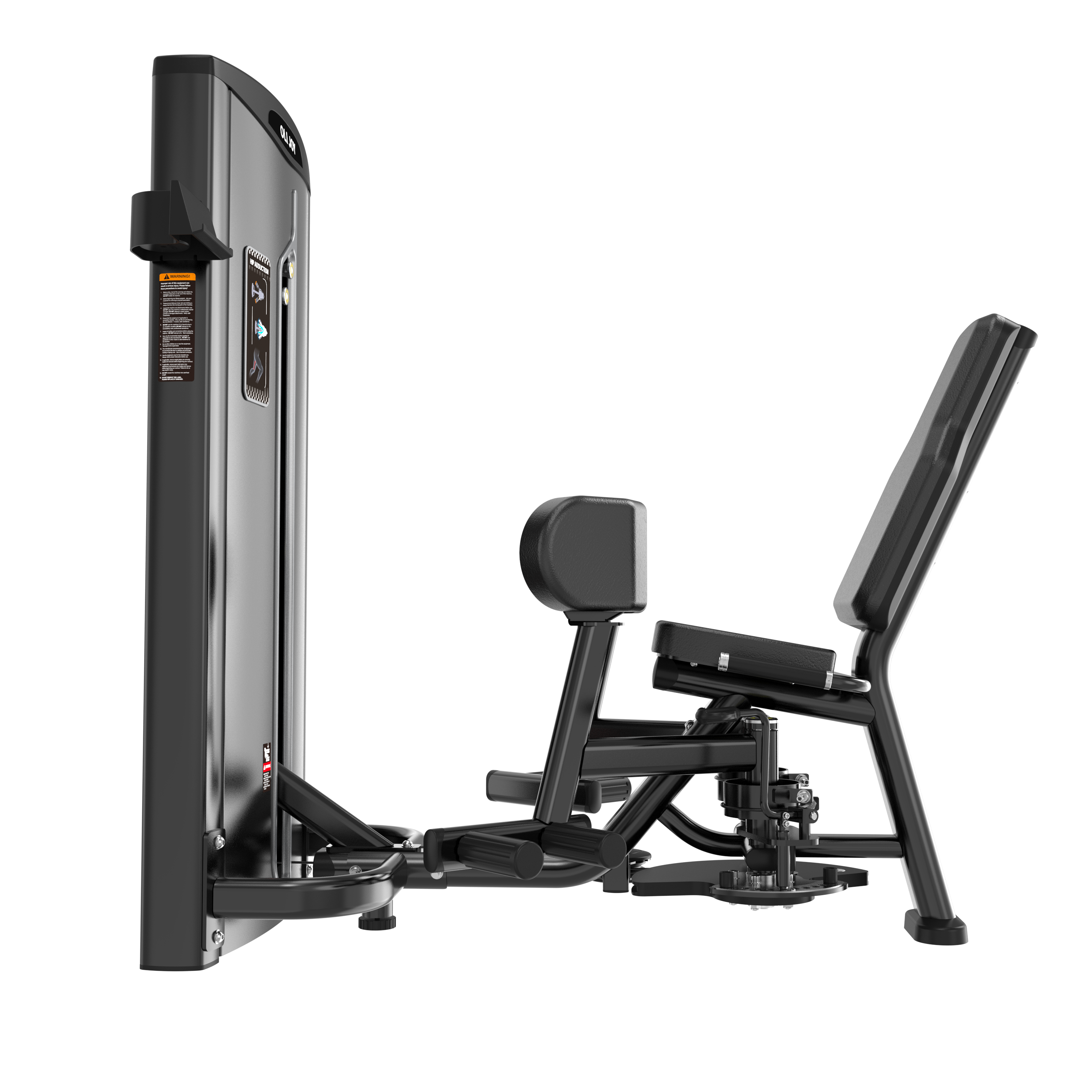

The Pin Loaded Abductor Machine is designed to isolate and strengthen the hip abductors, glutes, and outer thigh muscles. Built for commercial gyms, strength training facilities, rehabilitation centres, and performance environments, it delivers smooth, controlled resistance for effective lower-body training.
Constructed with a heavy-duty Q235 steel frame, reinforced oval tubing, and a commercial-grade selectorised weight stack system, the machine provides exceptional stability, durability, and long-term reliability. Featuring an adjustable starting position with 8 angle settings, oversized ergonomic thigh pads, and premium commercial components, it offers excellent biomechanics and user comfort during every workout.

Key Features

• Commercial-grade Q235 steel construction for superior durability
• Targets hip abductors and outer glute muscles
• 96kg weight stack + 4.6kg micro adjustment
• Adjustable starting position with 8 angle settings (20° increments)
• Maximum opening angle: 164°
• Oversized ergonomic thigh pads for improved comfort and stability
• High-density compressed foam upholstery
• Imported 7-strand, 19-wire steel cable system
• Ø20mm solid chrome-plated guide rods for smooth weight movement
• Aluminium alloy magnetic selector pin
• Space-efficient commercial design
• Electrostatic powder-coated finish for corrosion resistance
• Maximum user weight: 150kg

Product Specifications

• Product Type: Pin-Loaded Hip Abductor Machine
  Training Focus: Hip Abductors, Glutes & Outer Thigh
  Material: Q235 Steel

Frame & Construction

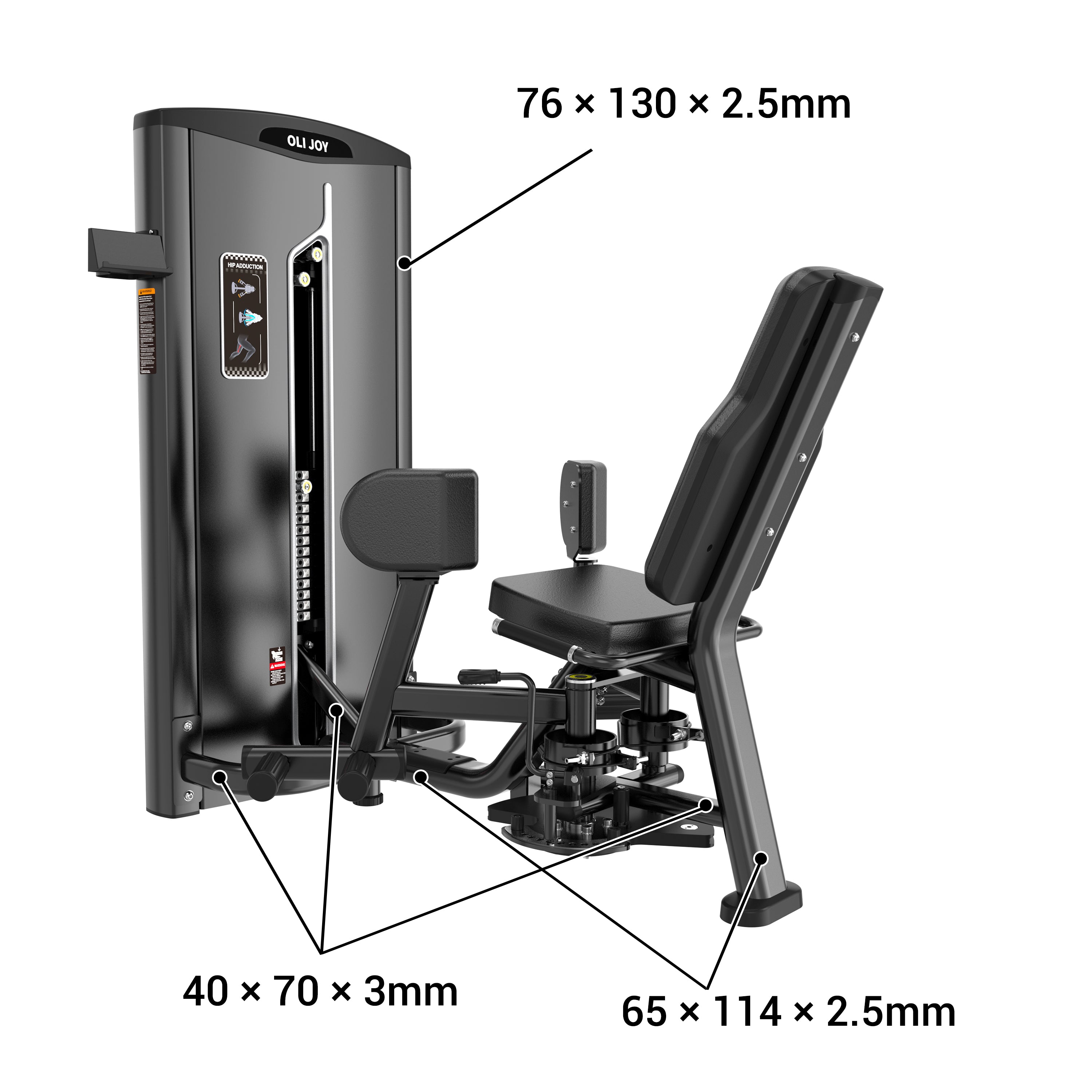

• Main Frame: 65 × 114 × 2.5mm Oval Tube
• Secondary Frame: 40 × 70 × 3mm Flat Oval Tube
• Door Frame: 76 × 130 × 2.5mm D-Shaped Tube
• Main Frame Application: Primary support frame
• Secondary Frame Application: Moving arms and connecting tubes
• Finish: Electrostatic Powder Coating
• Manufactured using:
  • Precision laser cutting
  • Intelligent robotic welding

• Shot blasting surface treatment
• Fully automatic electrostatic powder coating

Weight Stack System

• Weight Stack: 96kg + 4.6kg Micro Adjustment
• Top Plate: 5kg
• Weight Plate: 7kg each
• Micro Weight: 2.3kg × 2
• Shock-absorbing rubber weight plates
  Ø20mm solid chrome-plated guide rods
• Cable System
• Cable Type: 7-Strand, 19-Wire Steel Cable
• Cable Diameter: 5.6mm
• Commercial-grade pulley transmission for smooth resistance

Adjustment System

• Exercise Function: Hip Abduction
• Hip Adduction Function: Not Available
• Seat Height Adjustment: No
• Leg Pad Height Adjustment: No
• Starting Position Adjustment: Yes
• Adjustment Positions: 8 Positions
• Adjustment Increment: 20°
• Maximum Opening Angle: 164°

Leg Pads

• Pad Length: 270mm
• Pad Width: 200mm
• Pad Thickness: 60mm
• Large ergonomic thigh pads provide excellent comfort and support while maintaining correct training posture.

Comfort & User Features

• High-density compressed foam upholstery
• Thermoplastic PVC handles
• Dual round tube handle design
• Aluminium alloy end caps
• Aluminium alloy magnetic selector pin

Dimensions & Weight

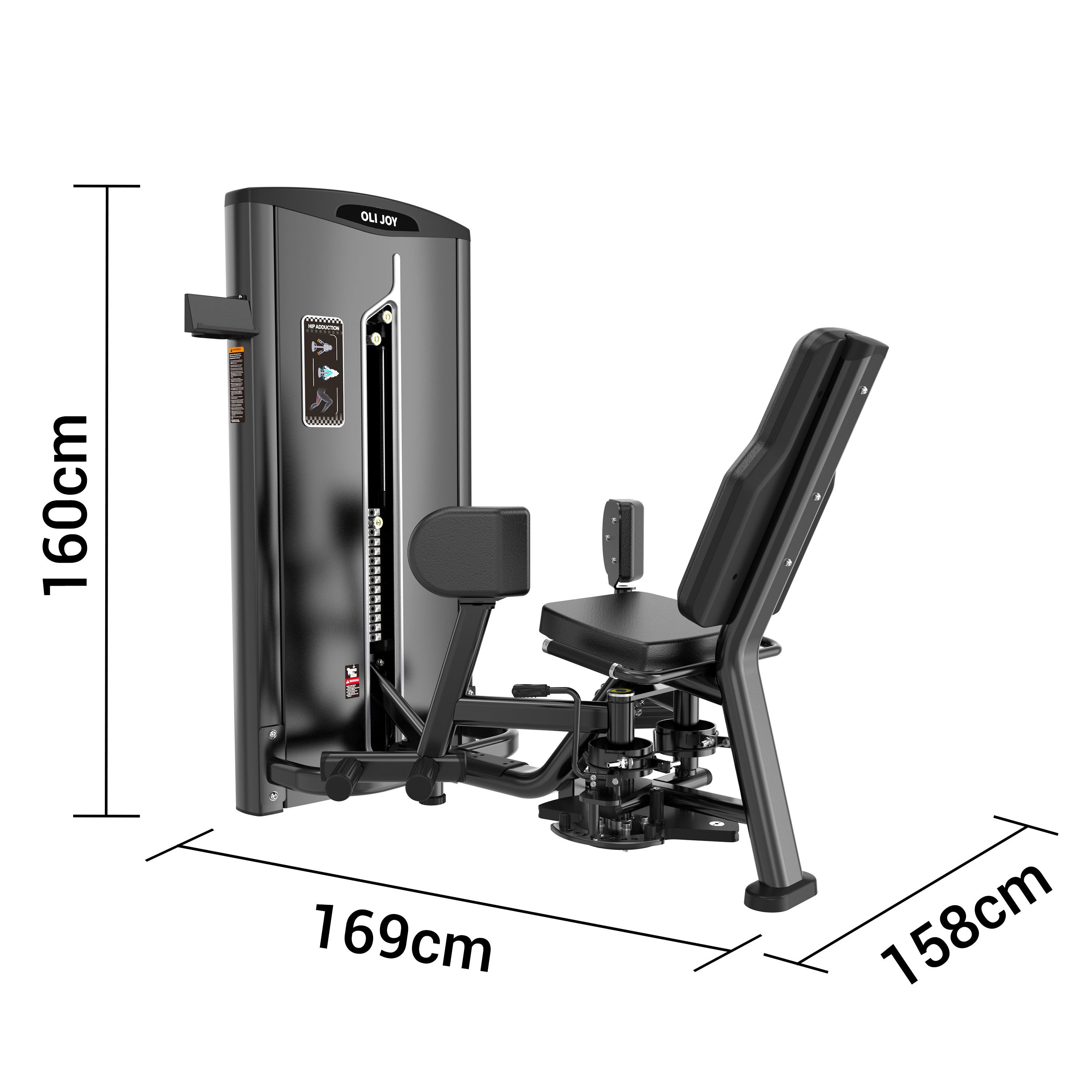

• Product Dimensions: 1690 × 1580 × 1600mm
• Package Dimensions: 1620 × 1320 × 720mm
• Maximum User Weight: 150kg
• Net Weight: 250kg
• Gross Weight: 290kg
• Product Code: 5634

Training Benefits

Isolates the hip abductors and glute muscles
Improves hip strength and lower-body stability
Enhances athletic performance and movement control
Supports rehabilitation and injury prevention
Promotes balanced lower-body muscle development
Suitable for beginners through advanced athletes

Ideal For

Commercial Gyms
Fitness Clubs
Strength Training Facilities
Personal Training Studios
Sports Performance Centres
Rehabilitation Clinics
Universities & Schools
Premium Home Gyms

Warranty

Frame: 1 Year
Other Parts: 1 Year
