OLI JOY Commercial-Grade Aluminium Half Trapeze Pilates Reformer
products.product.pickup_availability.unavailable
Product Details
The OLI JOY Commercial-Grade Aluminium Half Trapeze Pilates Reformer combines traditional reformer training with tower-based exercises in one versatile system.
Featuring a durable aluminium frame, stainless-steel half tower and separate spring systems, it provides adjustable resistance for strength, mobility, stretching and controlled Pilates training.
Features
-

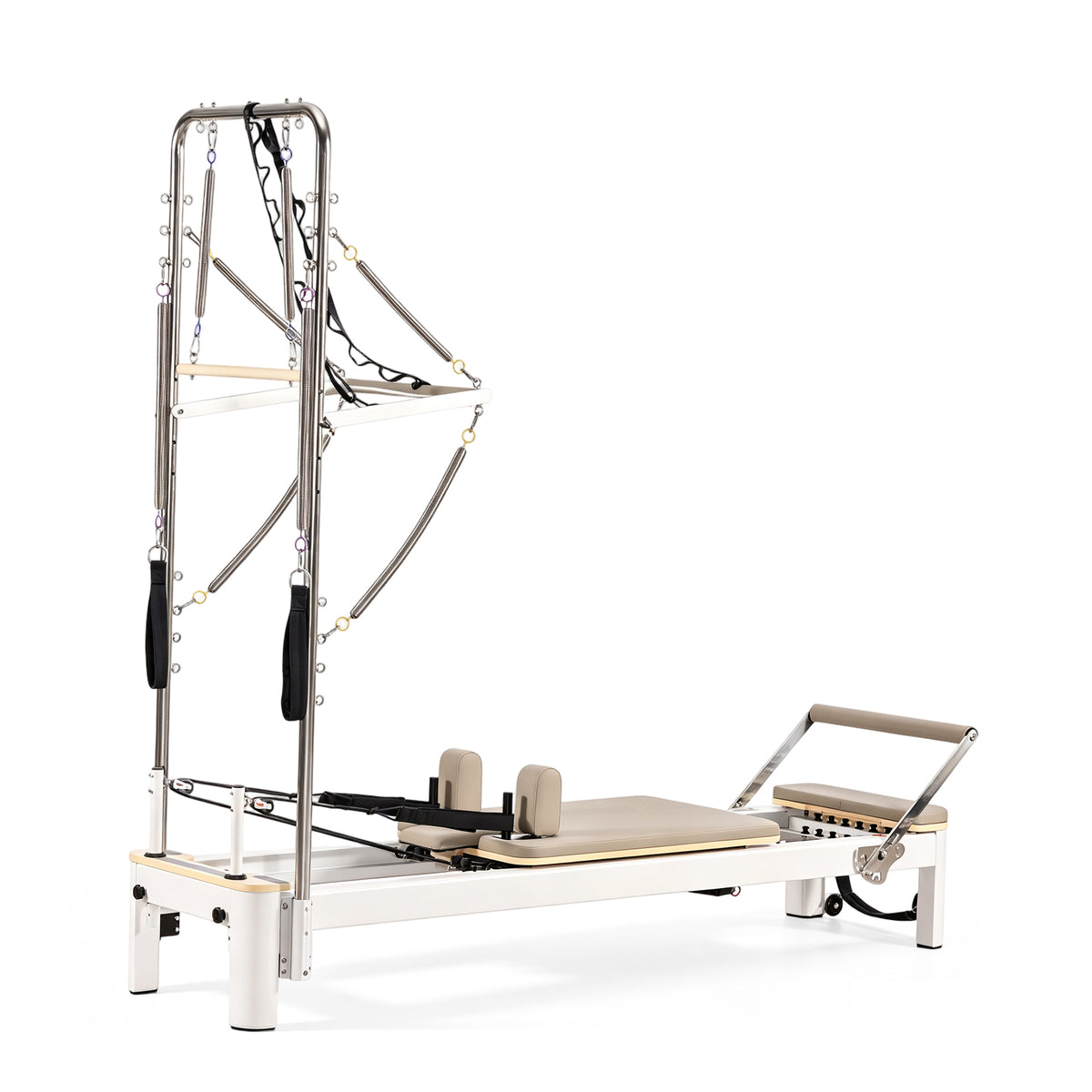

Commercial-grade Reformer + Half Trapeze Tower
-

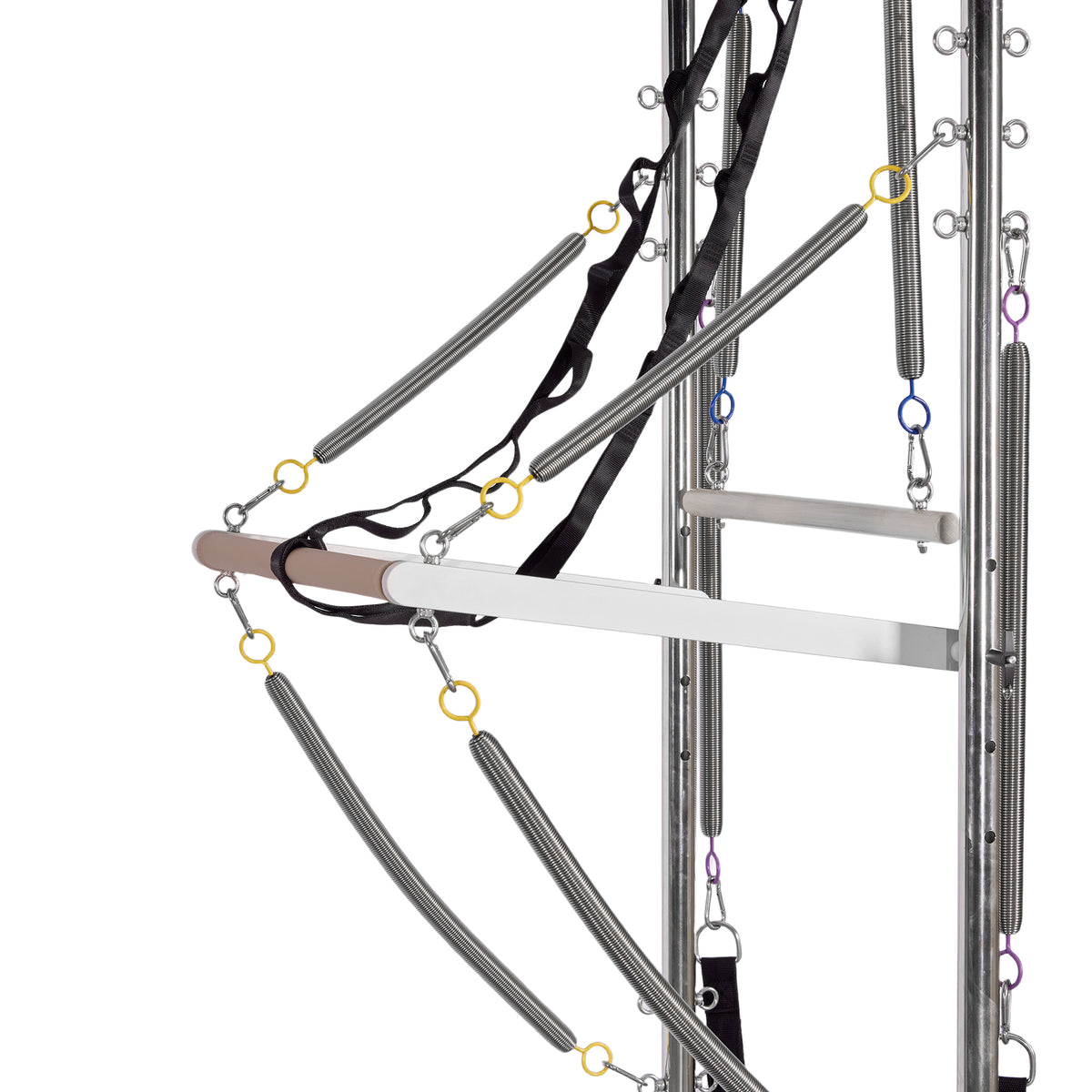

Stainless-steel half tower
-
Multiple resistance levels
-

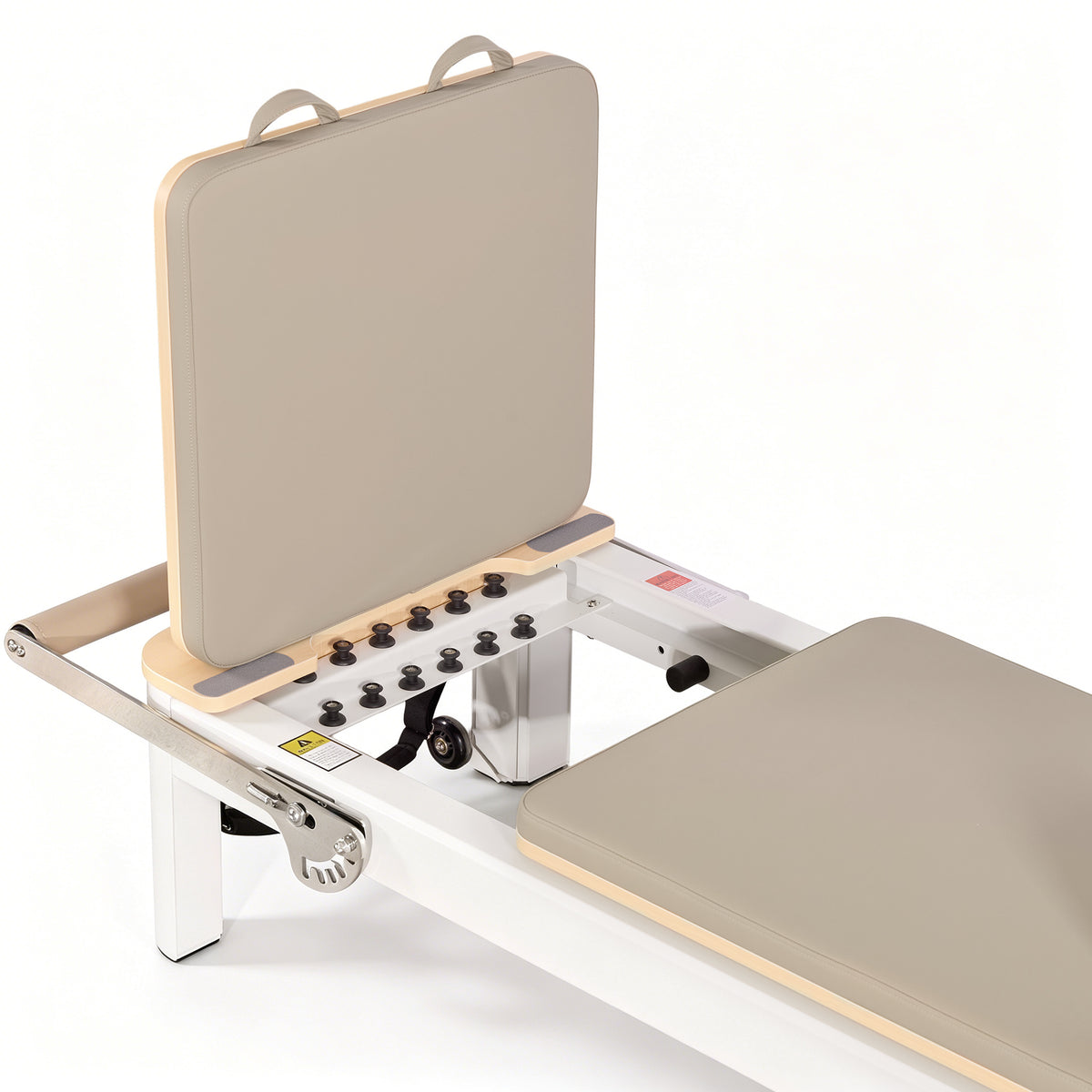

Smooth, controlled carriage movement
-

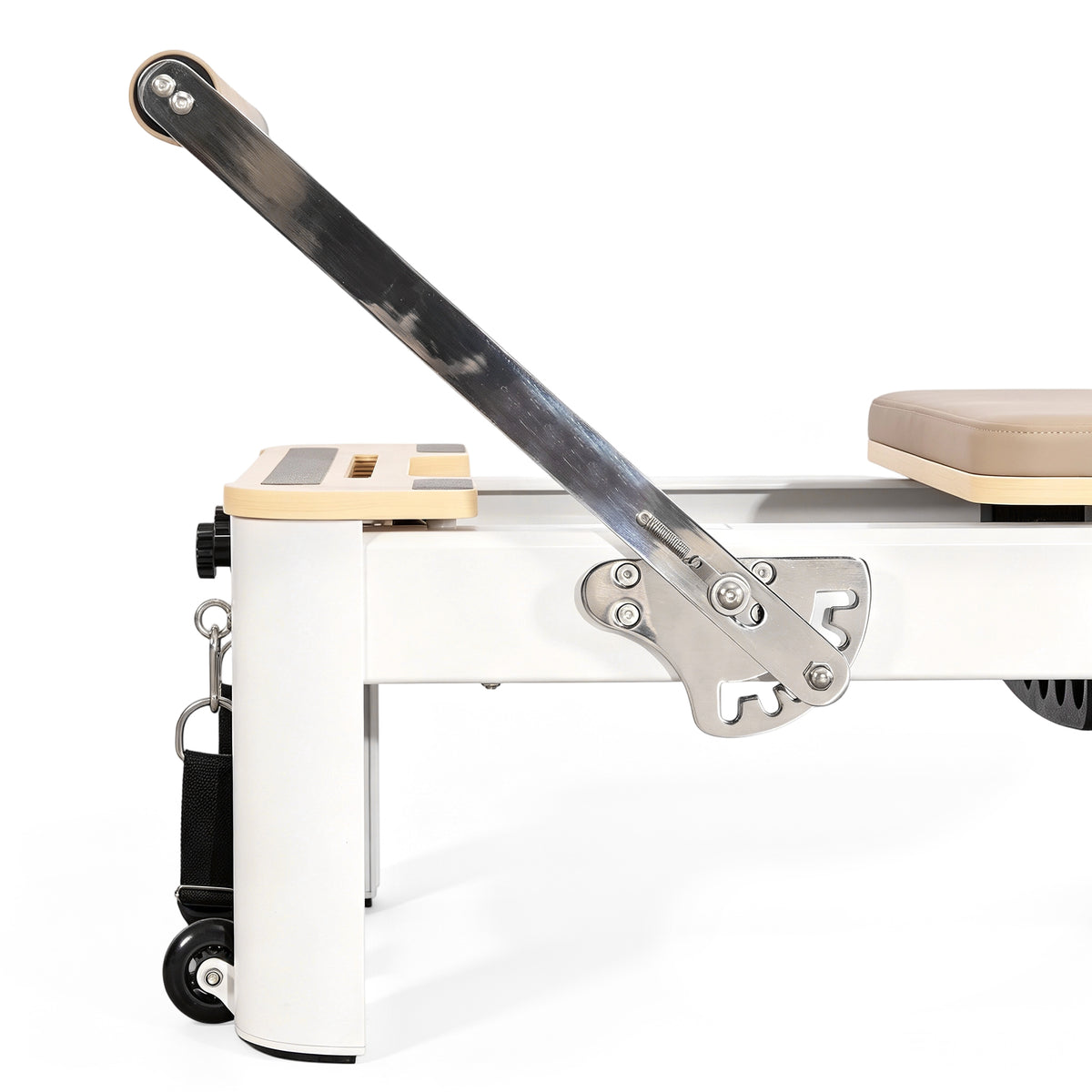

6-position adjustable footbar
-

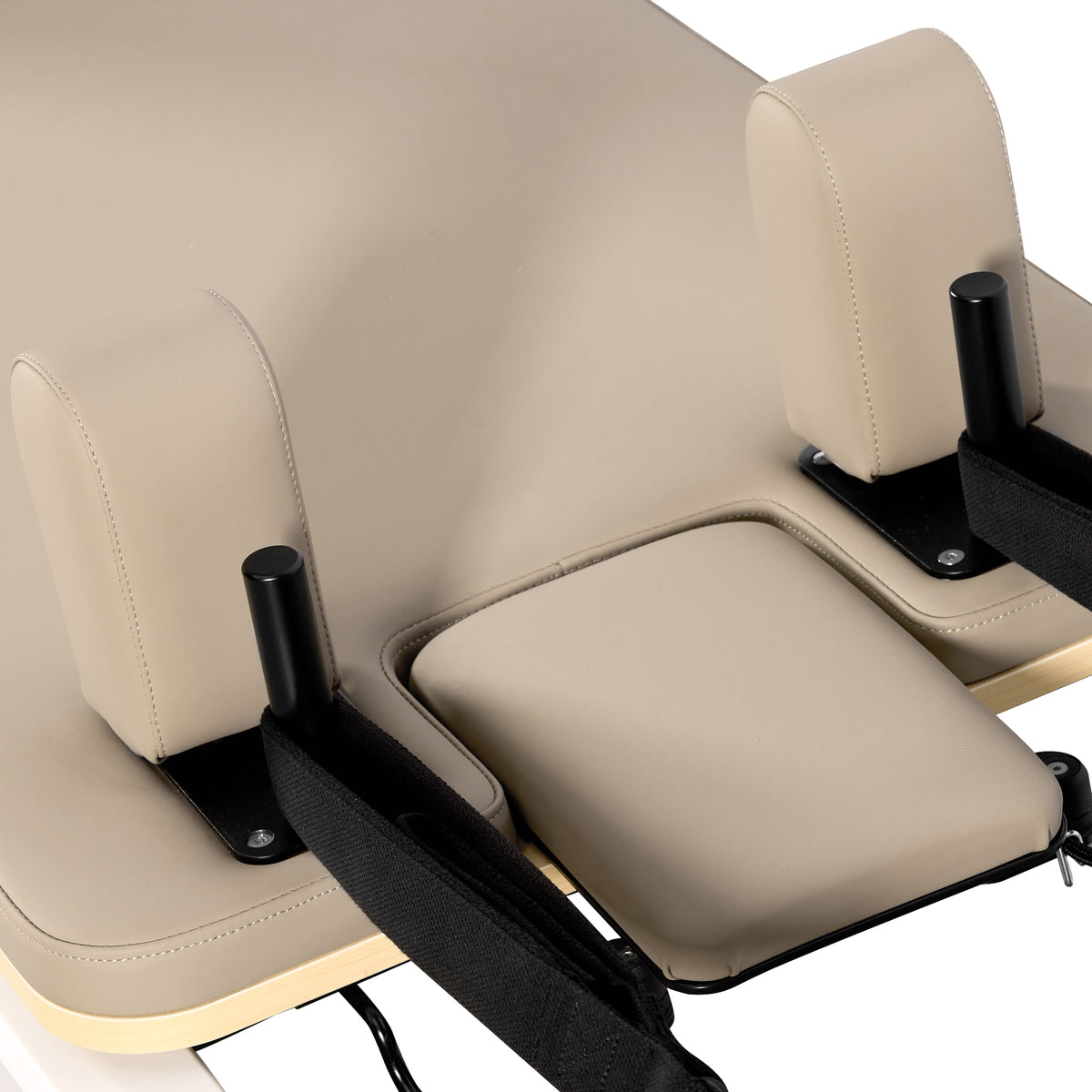

3-position adjustable headrest
-
Included Accessories
Specifications
| Reformer Springs | 6 |
|---|---|
| Yellow Springs | 2 × 1.68 kg / 3.72 lb - 8.4 kg / 18.5 lb |
| Green Springs | 2 × 2.24 kg / 4.98 lb - 14.5 kg / 31.9 lb |
| Red Springs | 2 × 3.16 kg / 7.03 lb - 27.8 kg / 61.2 lb |
| Half Trapeze Tower Springs | |
| Purple | 2 × Φ2.5 × 26.6 × 530 mm, 5.7–11.6 kg / 12.54–25.52 lb |
| Long Yellow | 2 × Φ2.3 × 27.3 × 530 mm, 2.1–5.6 kg / 4.62–12.32 lb |
| Blue | 2 × Φ2.5 × 27.4 × 370 mm, 4.6–12.3 kg / 10.12–27.06 lb |
| Short Yellow | 2 × Φ2.0 × 25 × 370 mm, 3.0–6.1 kg / 6.6–13.42 lb |
| Spring Bar | 2 positions |
| Footbar | 6 positions |
| Headrest | 3 positions |
| Rope Adjustment | 1 position |
| Rail | Integrated aluminium alloy groove rail |
| Carriage Height | 405 mm |
| Maximum User Weight | 130 kg |
| Net Weight | 112 kg |
| Frame | Aluminium alloy |
| Hardware | Q235 steel |
| Upholstery | Silicone upholstery with 25 mm aerobic foam |
| Transport Wheels | Yes |
| Foldable | No |
Overall Dimensions & Footprint
Reformer Gross Weight：158 kg
Tower Gross Weight：36 kg
Package detail
Gross Weight：194 kg
Inclusions
- 6 Reformer springs
- 8 Half Trapeze Tower springs
- Daisy chains
- Single-loop hand strap
- Rope post
- Shoulder rests
- Ropes
- Hand straps
- U-shaped frame
- Wooden dowel
Warranty
Other Parts：1 Year
Shipping & Delivery
Residential Delivery Large-item deliveries are to an accessible, flat ground-floor area only and do not include inside delivery. Please contact us before ordering if there are slopes, stairs, restricted access or no suitable unloading area. Special access can be reviewed case by case.
Business Delivery – Lower Rates Available Lower freight rates may be available for business addresses, especially with a loading zone or forklift. Standard delivery is to the ground-floor unloading area only. Contact shipping@olijoysports.com for a quote.
Depot Collection – Lower-Cost Option A budget-friendly option where you collect your order from the carrier’s depot. A suitable vehicle may be required. Collection must be made within the carrier’s timeframe; any storage or additional fees caused by late collection or an incorrectly selected delivery option are the customer’s responsibility.
*Important: Large-item freight delivery does not include delivery inside your home or business.
1 Hour Click & Collection from Darra, Brisbane
Free Delivery to Gold Coast
Same day dispatch Australia-wide
Product Description
OLI JOY Commercial-Grade Aluminium Half Trapeze Pilates Reformer
One Machine. Two Methods.
The OLI JOY Professional Value Aluminium Half Trapeze Reformer combines two Pilates training systems in one professional setup: a full Reformer and an integrated Half Trapeze Tower.
Built around a durable aluminium frame and Half Tower structure, the system features a 14-spring resistance setup, including six German WAGNER Reformer springs and eight dedicated Tower springs. Multiple adjustment points and an automatic rope system provide a versatile platform for Reformer carriage work, spring-assisted strength, mobility, stretching and controlled full-body Pilates training.
Designed to deliver professional functionality and strong overall value, it is well suited to Pilates studios, professional training spaces and premium home Pilates setups.
Key Highlights
- One Machine. Two Methods. – Reformer + Half Trapeze Tower
- 14-Spring System – 6 Reformer springs + 8 Tower springs
- German WAGNER 6-Spring Reformer System
- Three Reformer resistance levels: Yellow / Blue / Red
- Separate Half Tower spring resistance system
- Durable aluminium frame + Half Tower structure
- Integrated aluminium groove rail
- Automatic rope system
- 6-position adjustable footbar
- 2-position spring bar
- 3-position adjustable headrest
- Smooth, controlled carriage movement
- Designed for professional and premium Pilates environments
14-Spring Resistance System
The complete system includes 14 springs across two independent resistance systems:
- 6 German WAGNER Reformer springs for carriage-based exercises
- 8 Half Trapeze Tower springs for Tower-based training
This separate spring configuration allows resistance to be selected according to the exercise, movement pattern and training requirement.
German WAGNER 6-Spring Reformer System
The Reformer is equipped with six German WAGNER springs, divided across three colour-coded resistance levels.
With two Yellow, two Blue and two Red springs, users and instructors can combine different springs to progressively adjust carriage resistance.
Technical Specifications
Reformer
|
Specification |
Details |
|
Reformer Springs |
6 |
|
Spring Bar |
2 positions |
|
Footbar |
6 positions |
|
Headrest |
3 positions |
|
Rope Adjustment |
1 position |
|
Rail |
Integrated aluminium alloy groove rail |
|
Carriage Height |
405 mm |
|
Maximum User Weight |
130 kg |
|
Net Weight |
112 kg |
|
Frame |
Aluminium alloy |
|
Hardware |
Q235 steel |
|
Upholstery |
Silicone upholstery with 25 mm aerobic foam |
|
Transport Wheels |
Yes |
|
Foldable |
No |
|
Product Code |
5644 |

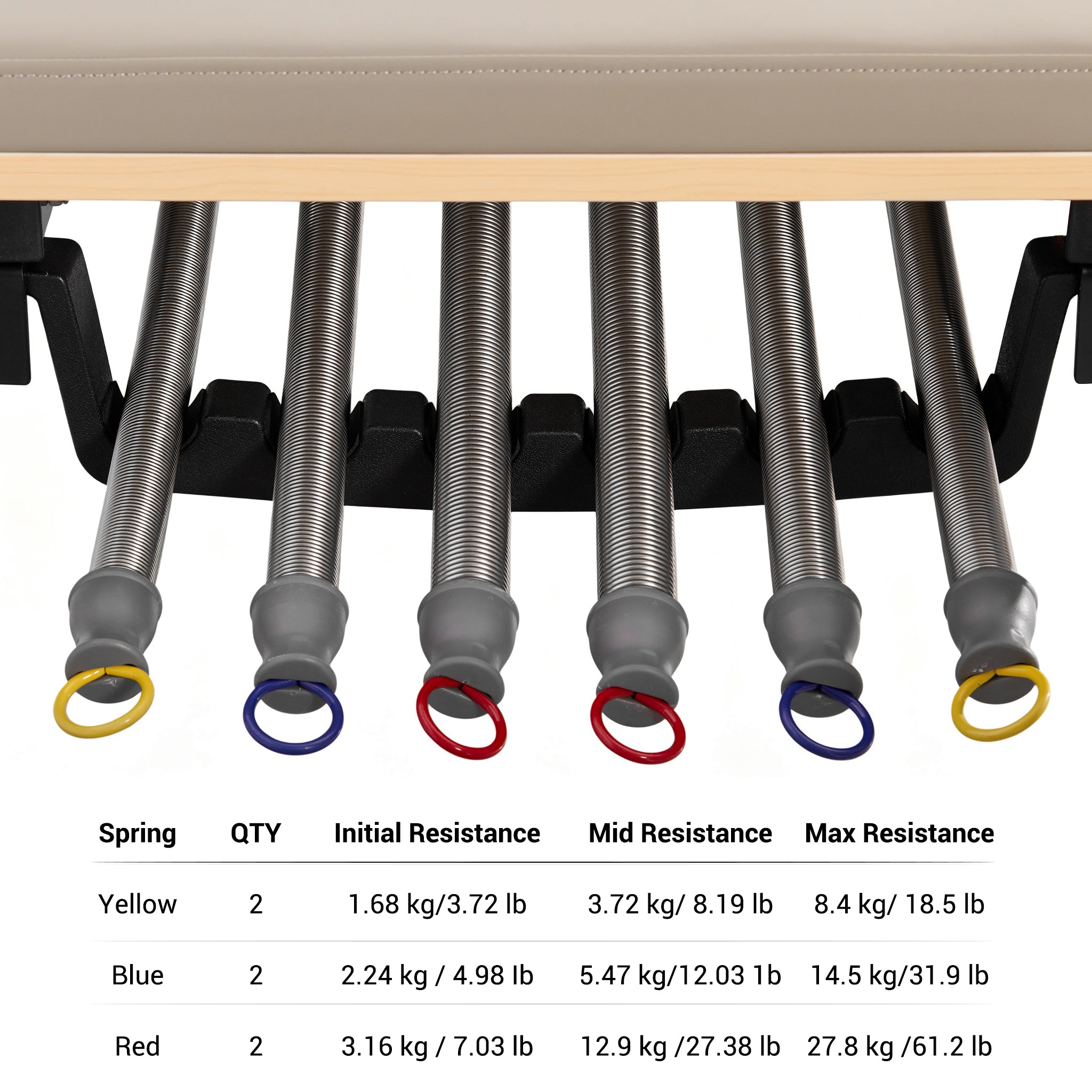

Reformer Spring Configuration
|
Spring |
Qty |
Initial Resistance |
Mid Resistance |
Max Resistance |
|
Yellow |
2 |
1.68 kg / 3.72 lb |
3.72 kg / 8.19 lb |
8.4 kg / 18.5 lb |
|
Green |
2 |
2.24 kg / 4.98 lb |
5.47 kg / 12.03 lb |
14.5 kg / 31.9 lb |
|
Red |
2 |
3.16 kg / 7.03 lb |
12.9 kg / 27.38 lb |
27.8 kg / 61.2 lb |
The three resistance levels provide flexible spring combinations for controlled carriage work, strength exercises and mobility training.

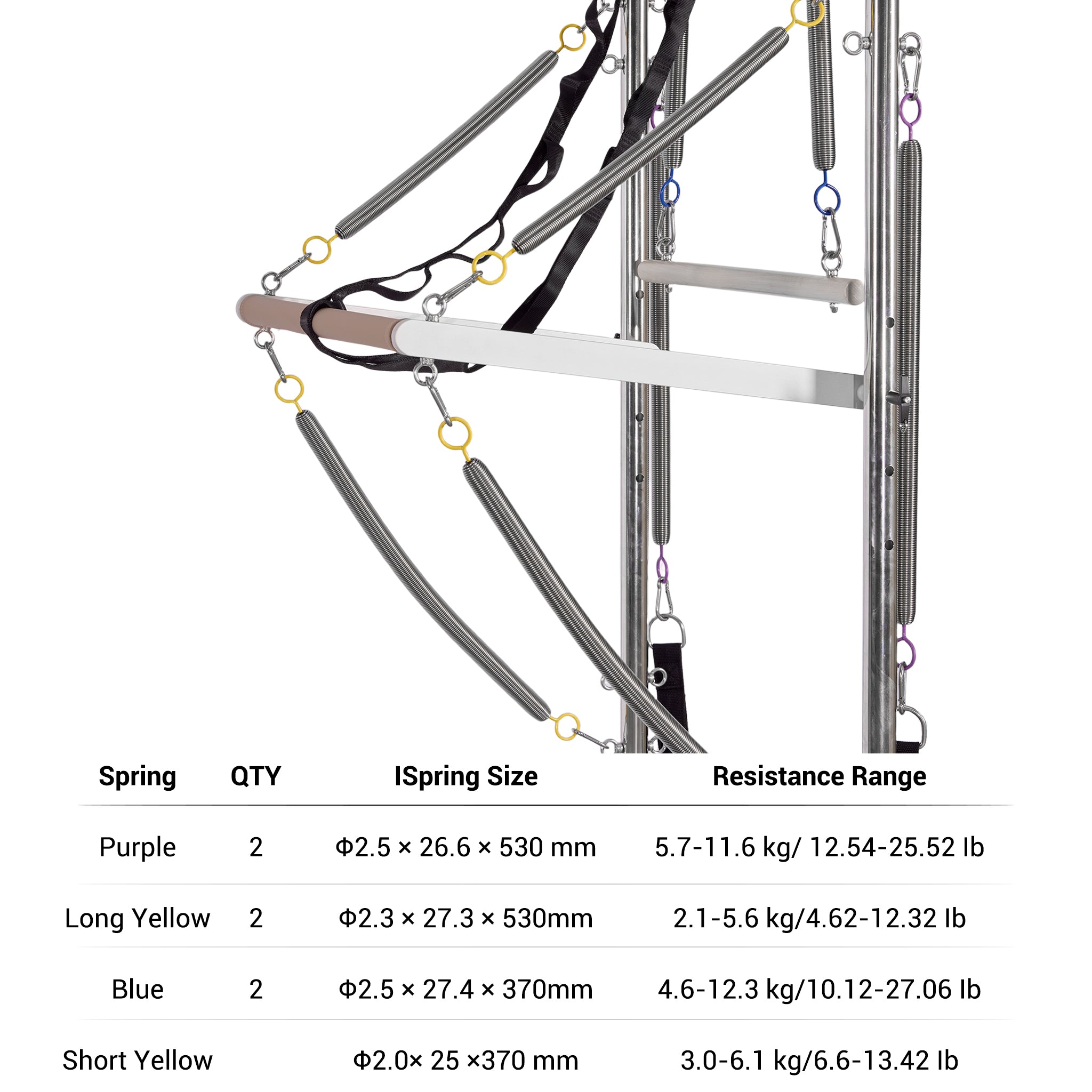

Half Trapeze Tower Spring Configuration
|
Spring |
Qty |
Spring Size |
Resistance Range |
|
Purple |
2 |
Φ2.5 × 26.6 × 530 mm |
5.7–11.6 kg / 12.54–25.52 lb |
|
Long Yellow |
2 |
Φ2.3 × 27.3 × 530 mm |
2.1–5.6 kg / 4.62–12.32 lb |
|
Blue |
2 |
Φ2.5 × 27.4 × 370 mm |
4.6–12.3 kg / 10.12–27.06 lb |
|
Short Yellow |
2 |
Φ2.0 × 25 × 370 mm |
3.0–6.1 kg / 6.6–13.42 lb |
The tower spring system provides multiple resistance ranges for upper-body exercises, stretching, mobility and controlled spring-assisted movements.
Overall Dimensions & Packaging
|
Specification |
Details |
|
Overall Dimensions |
2560 × 680 × 2100 mm (L × W × H) |
|
Reformer Packaging |
2600 × 750 × 530 mm timber crate |
|
Tower Packaging |
2060 × 800 × 125 mm carton |
|
Reformer Gross Weight |
158 kg |
|
Tower Gross Weight |
36 kg |
|
Total Gross Weight |
194 kg |

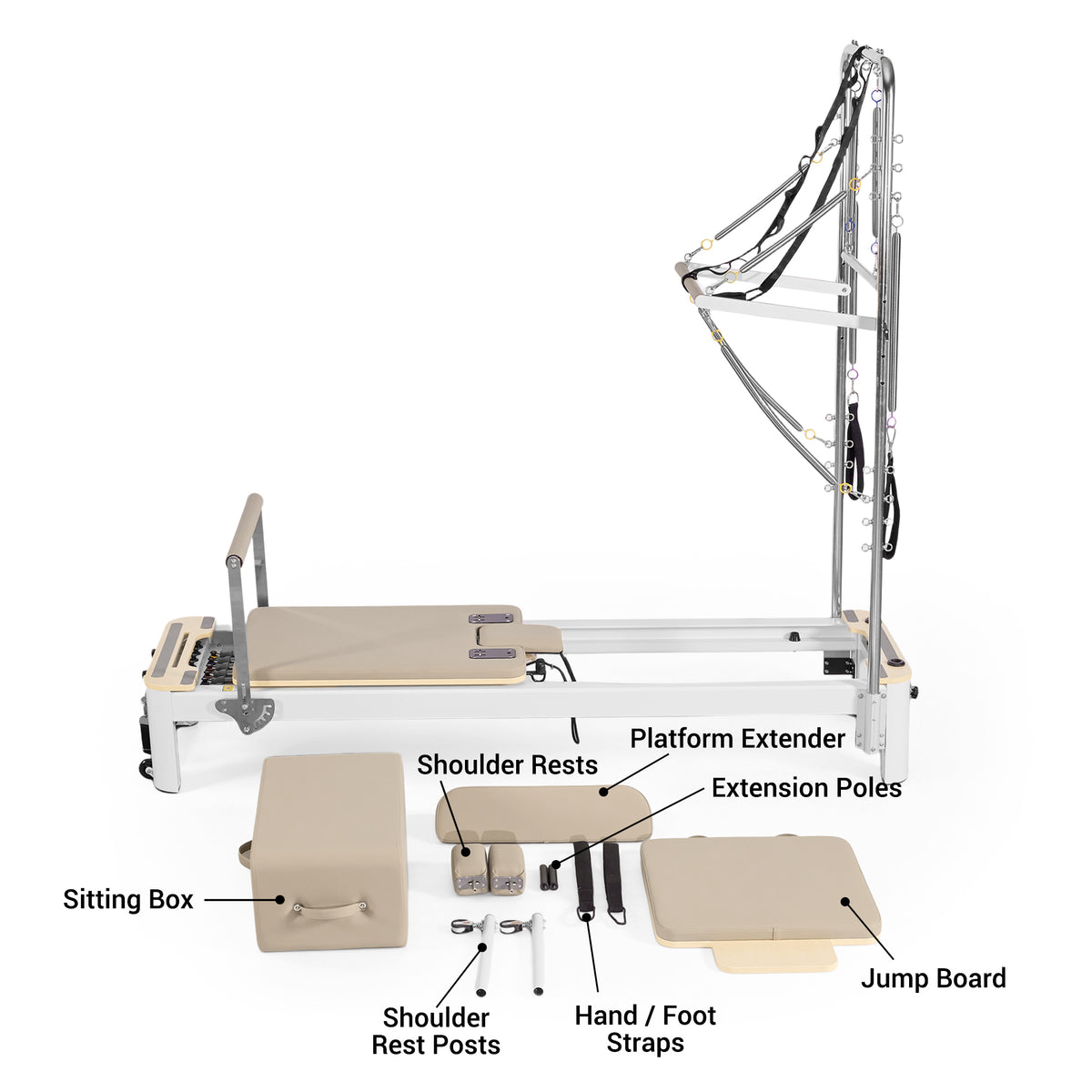

Included Accessories
-
6 Reformer springs
-
8 Half Trapeze Tower springs
-
Daisy chains
-
Single-loop hand strap
-
Rope post
-
Shoulder rests
-
Ropes
-
Hand straps
-
U-shaped frame
-
Wooden dowel
-
English manual
Frequently Asked Questions
How many springs are included?
The complete system includes 14 springs: 6 reformer springs and 8 Half Trapeze Tower springs.
Does the reformer have different resistance levels?
Yes. The reformer includes six colour-coded springs across three resistance levels, allowing different spring combinations for varied exercises and training intensities.
What is the benefit of the Half Trapeze Tower?
The Half Trapeze Tower expands the exercise range beyond standard reformer carriage work, supporting additional strength, stretching, mobility and spring-assisted exercises.
What is the maximum user weight?
The maximum user weight is 130 kg.
Is it suitable for commercial use?
Yes. The aluminium frame, stainless-steel tower and adjustable spring systems make it suitable for Pilates studios and professional training environments.
Is it foldable?
No. This is a fixed-frame Pilates Reformer and Half Trapeze Tower system.
Specifications are based on supplier information and may be updated as product documentation is finalised.
