Junction Bar （L）

Modular Junction Bar Support Beam

Modular Power Rack System

Transform your workout environment with the Modular Junction Bar Support Beam, a key structural component of the Modular Power Rack System. Designed for strength, stability, and flexibility, it allows you to build a highly versatile multi-training setup suitable for home gyms.

Key Features

• Modular Design
   Customise your rig to match your training needs. Compatible with multiple attachments such as pull-up bars, dip stations, and storage solutions.


• Heavy-Duty Construction
   Made from high-grade steel for superior durability, load stability, and long-term use.


• Space-Efficient Structure
   Ideal for compact home gyms or full commercial setups, maximising training space without compromising strength.


• Multi-Purpose Use
   Supports a wide range of exercises including squats, bench press, pull-ups, dips, and suspension training.


• Easy Assembly
  Simple structure with precise hole spacing for quick and secure installation.

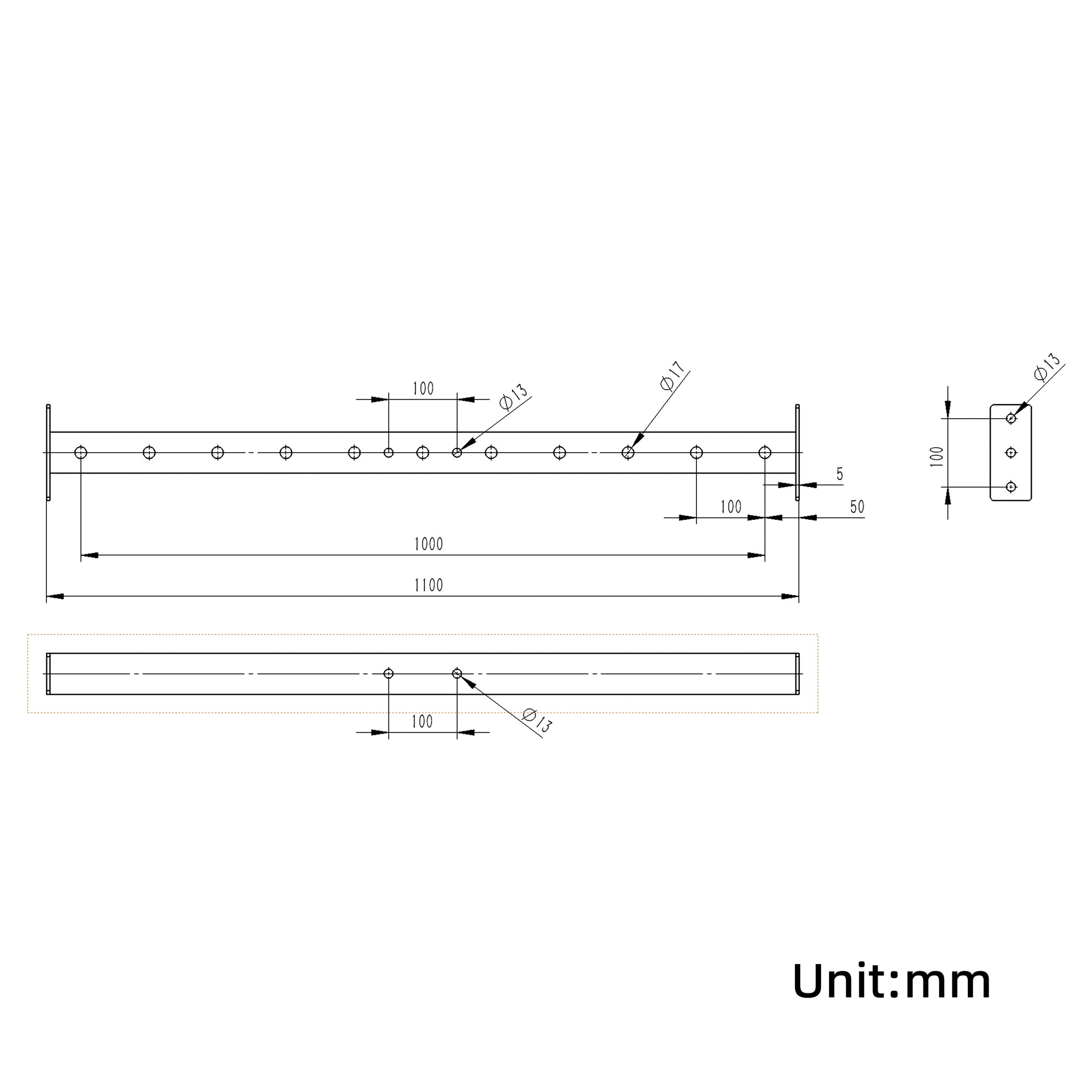

Structural Specifications

• Frame Size: 6 cm x 6cm frame

• Steel thickness：2.0mm

• Connection plates, Thickness: 8.0 mm

• End plate Height: 19cm

• Hole Spacing: 3cm

• Weight Capacity: 500 kg

• Hole size:1.6mm

Structural Specifications

• Frame Size: 6 cm × 6 cm frame


• Steel Thickness: 2.0 mm


• Connection Plate Thickness: 5.0 mm


• End Plate Height: 14 cm


• Hole Spacing: 10 cm


• Hole Size: 17 mm / 13 mm


• Weight Capacity: 500 kg


Specifications

• Material: Heavy-duty steel tube


• Colour: Black


• Product Weight: 4.9 kg


• Package Weight: 4.9 kg

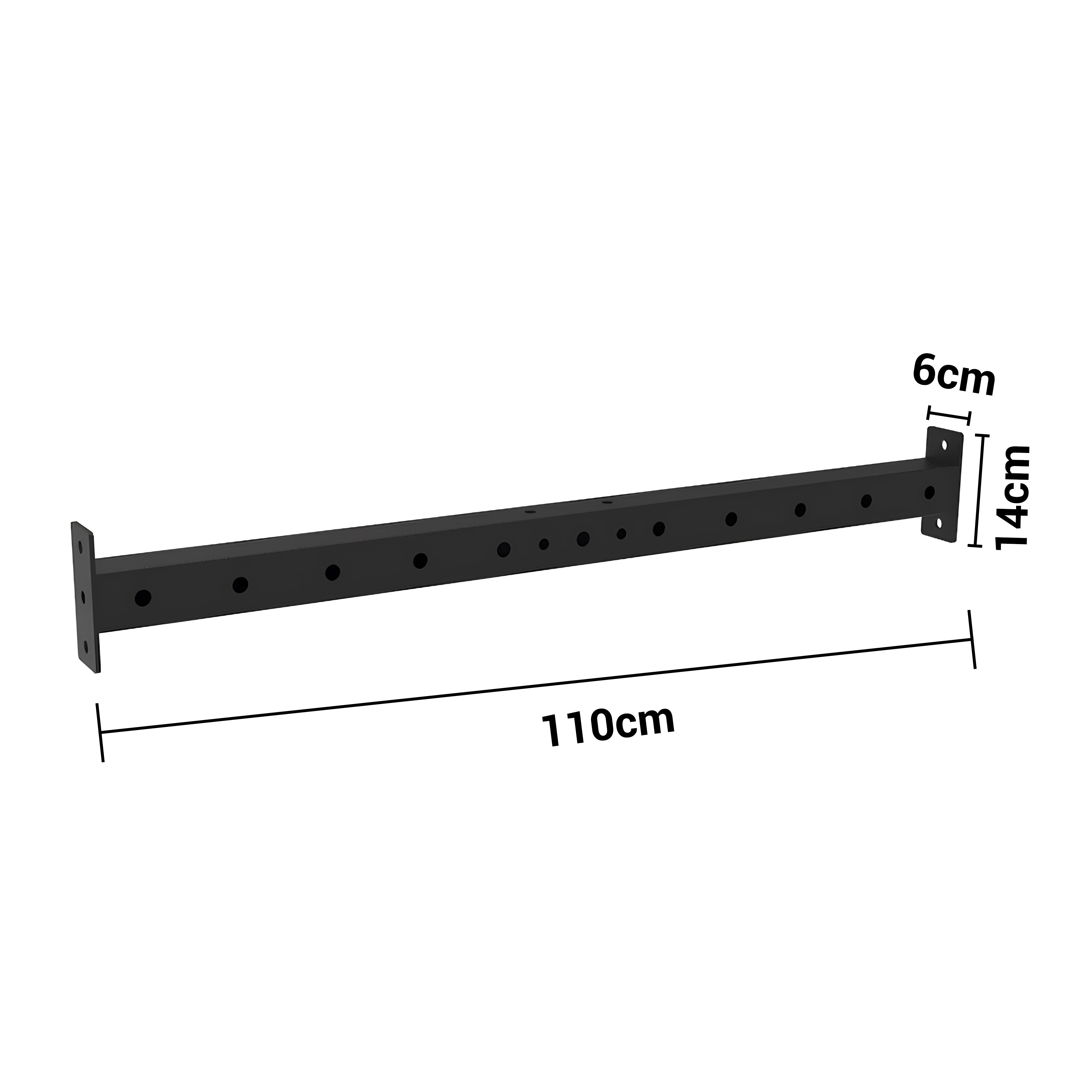

• Product Dimensions: 110 × 6 × 14 cm


• Package Dimensions: 110 × 6 × 14 cm


• Barcode: 8002


Package Includes

• 1 × Modular Junction Bar （L）
