Commercial Pin Loaded Hip Abductor / Abductor & Adductor Machine

Commercial Pin Loaded Hip Abductor / Abductor & Adductor Machine

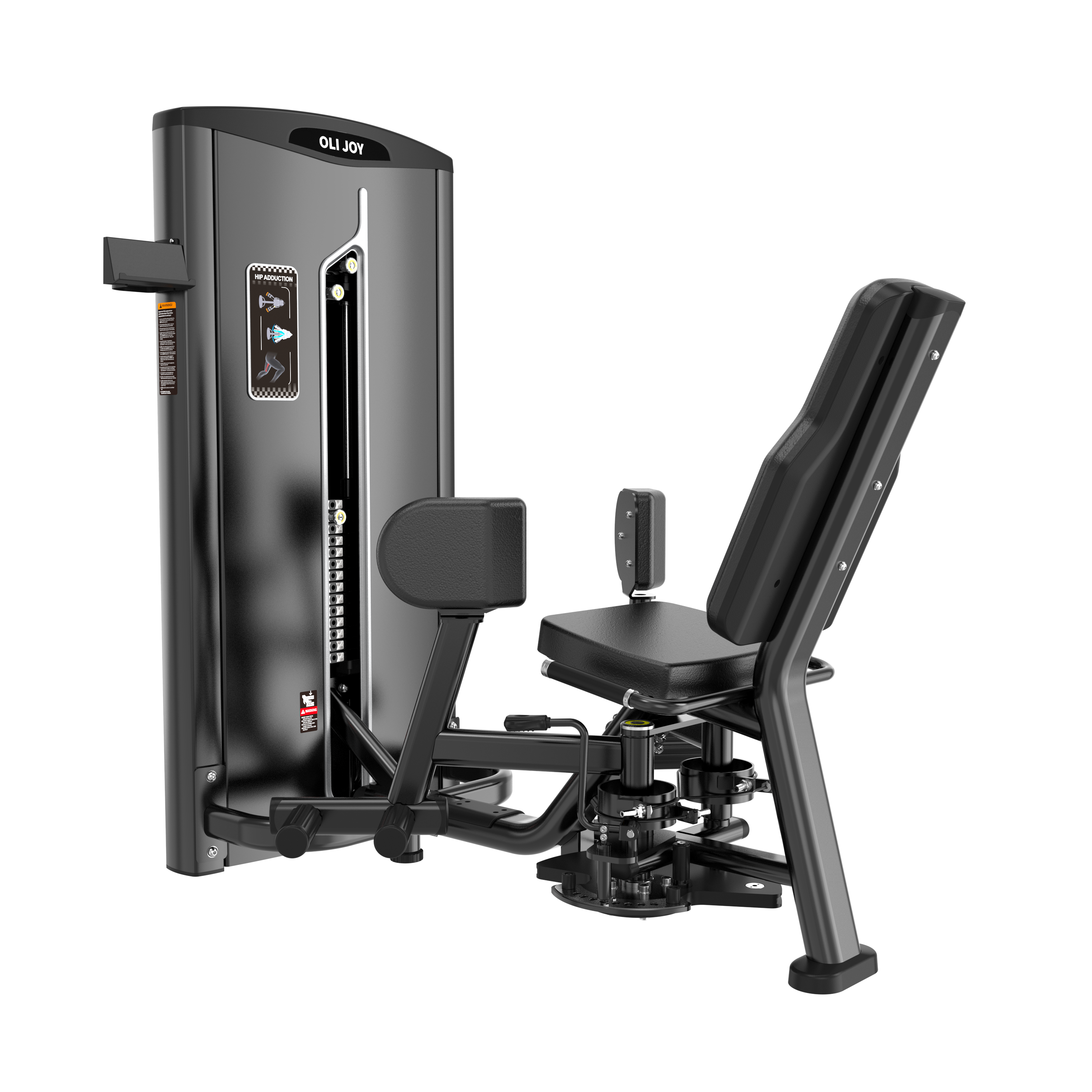

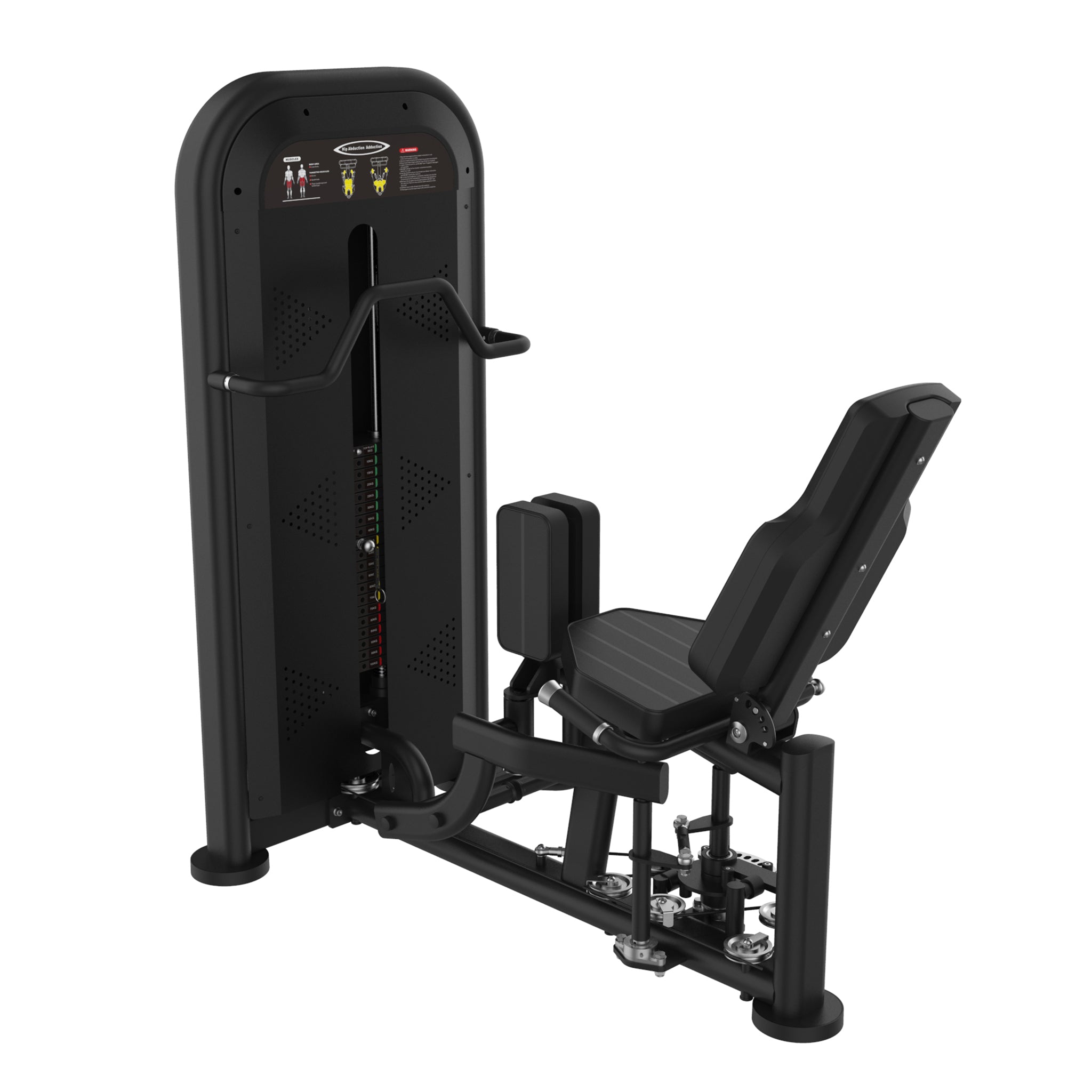

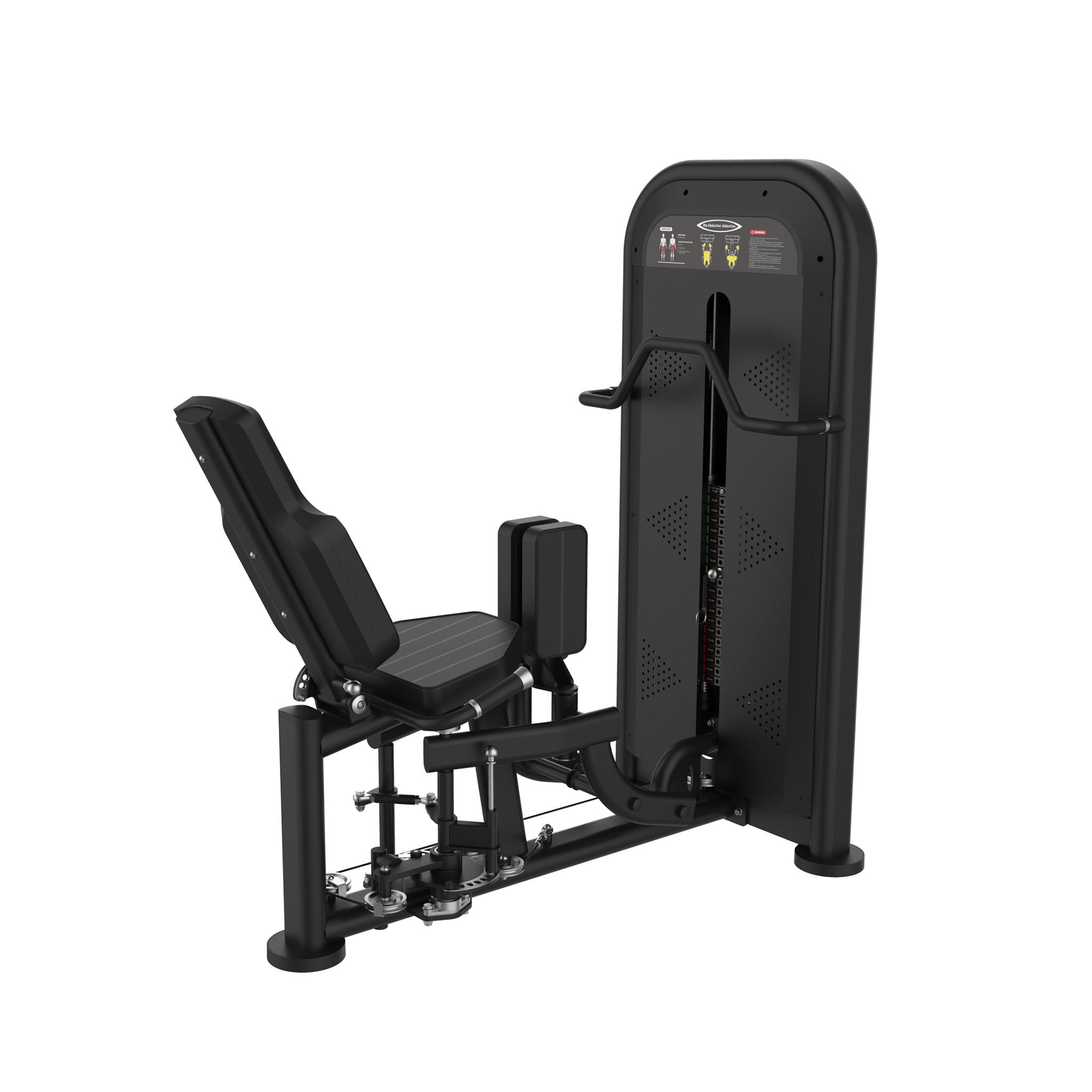

The OLI JOY Commercial Pin Loaded Hip Abductor Machine is available in two versions to suit different training requirements:

• Hip Abductor Version – designed for targeted hip abduction training, focusing on the glutes, hip abductors and outer thighs.

• Hip Abductor & Adductor Version – provides both hip abduction and hip adduction exercises in one machine, allowing users to train the outer and inner thigh muscle groups.

Built for commercial gyms, strength training facilities, rehabilitation centres and performance environments, both versions deliver smooth, controlled resistance for effective lower-body training.

Constructed with a heavy-duty Q235 steel frame, reinforced oval tubing and a commercial-grade selectorised weight stack system, the machine provides excellent stability and durability. An adjustable starting position with 8 angle settings, oversized ergonomic thigh pads and premium commercial components provides comfortable positioning and controlled movement throughout each exercise.

Key Features

• Available in Hip Abductor and Hip Abductor & Adductor versions

• Commercial-grade Q235 steel construction

• Targeted lower-body isolation training

• Hip Abductor: targets the hip abductors, glutes and outer thighs

• Hip Abductor & Adductor: trains both outer and inner thigh muscle groups

• 96kg weight stack + 4.6kg micro adjustment

• Adjustable starting position with 8 angle settings (20° increments)

• Maximum opening angle: 164°

• Oversized ergonomic thigh pads for improved comfort and stability

• High-density compressed foam upholstery

• Imported 7-strand, 19-wire steel cable system

• Ø20mm solid chrome-plated guide rods for smooth weight movement

• Aluminium alloy magnetic selector pin

• Space-efficient commercial design

• Electrostatic powder-coated finish for corrosion resistance

• Maximum user weight: 150kg

Product Specifications

• Product Type: Commercial Pin-Loaded Hip Abductor / Hip Abductor & Adductor Machine

• Available Versions: Hip Abductor / Hip Abductor & Adductor

• Training Focus: Glutes, Hip Abductors, Outer Thighs & Inner Thighs*

• Material: Q235 Steel

*Inner thigh / hip adductor training applies to the Hip Abductor & Adductor version.

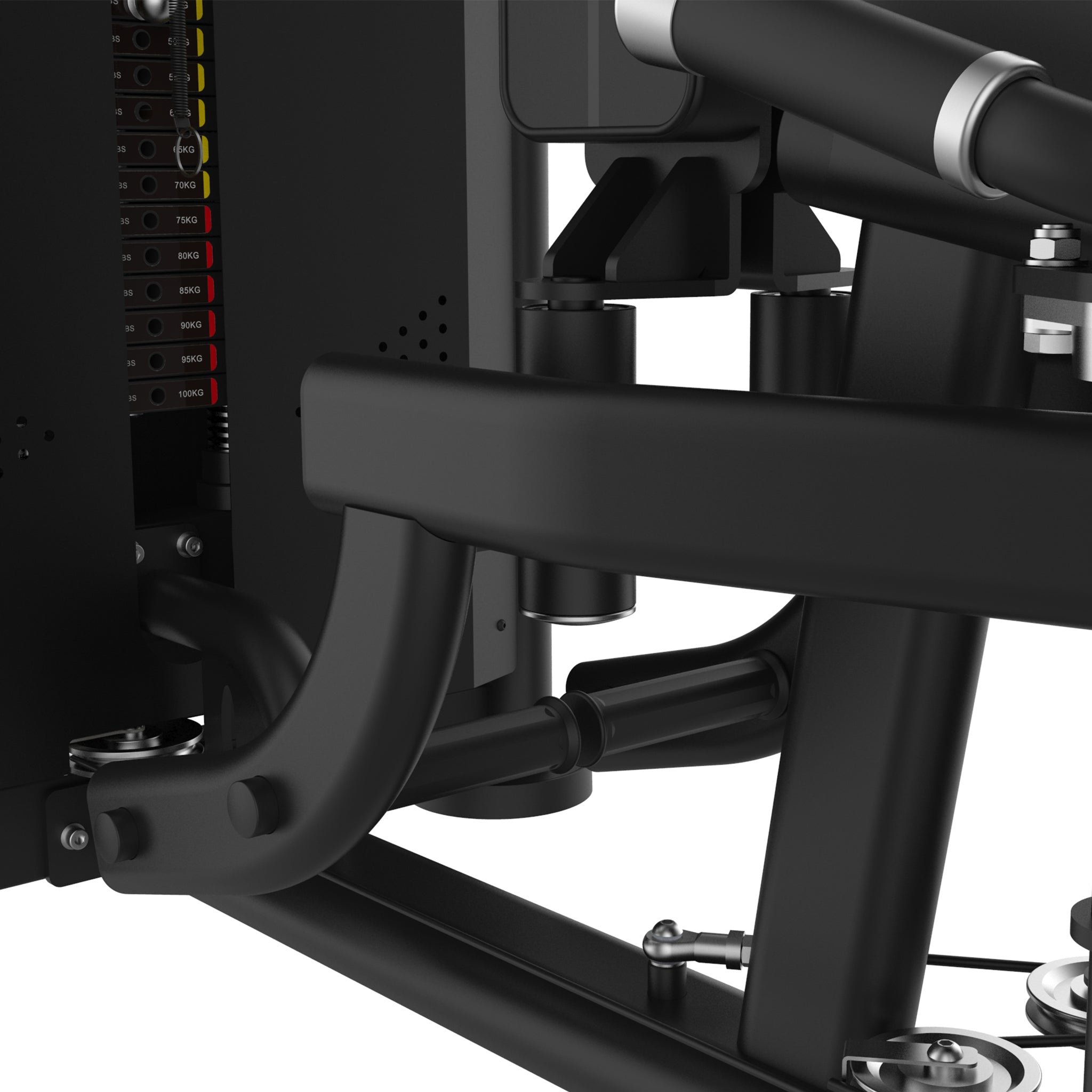

Frame & Construction

• Main Frame: 65 × 114 × 2.5mm Oval Tube

• Secondary Frame: 40 × 70 × 3mm Flat Oval Tube

• Door Frame: 76 × 130 × 2.5mm D-Shaped Tube

• Main Frame Application: Primary support frame

• Secondary Frame Application: Moving arms and connecting tubes

• Finish: Electrostatic Powder Coating

• Precision laser cutting

• Intelligent robotic welding

• Shot blasting surface treatment

• Fully automatic electrostatic powder coating

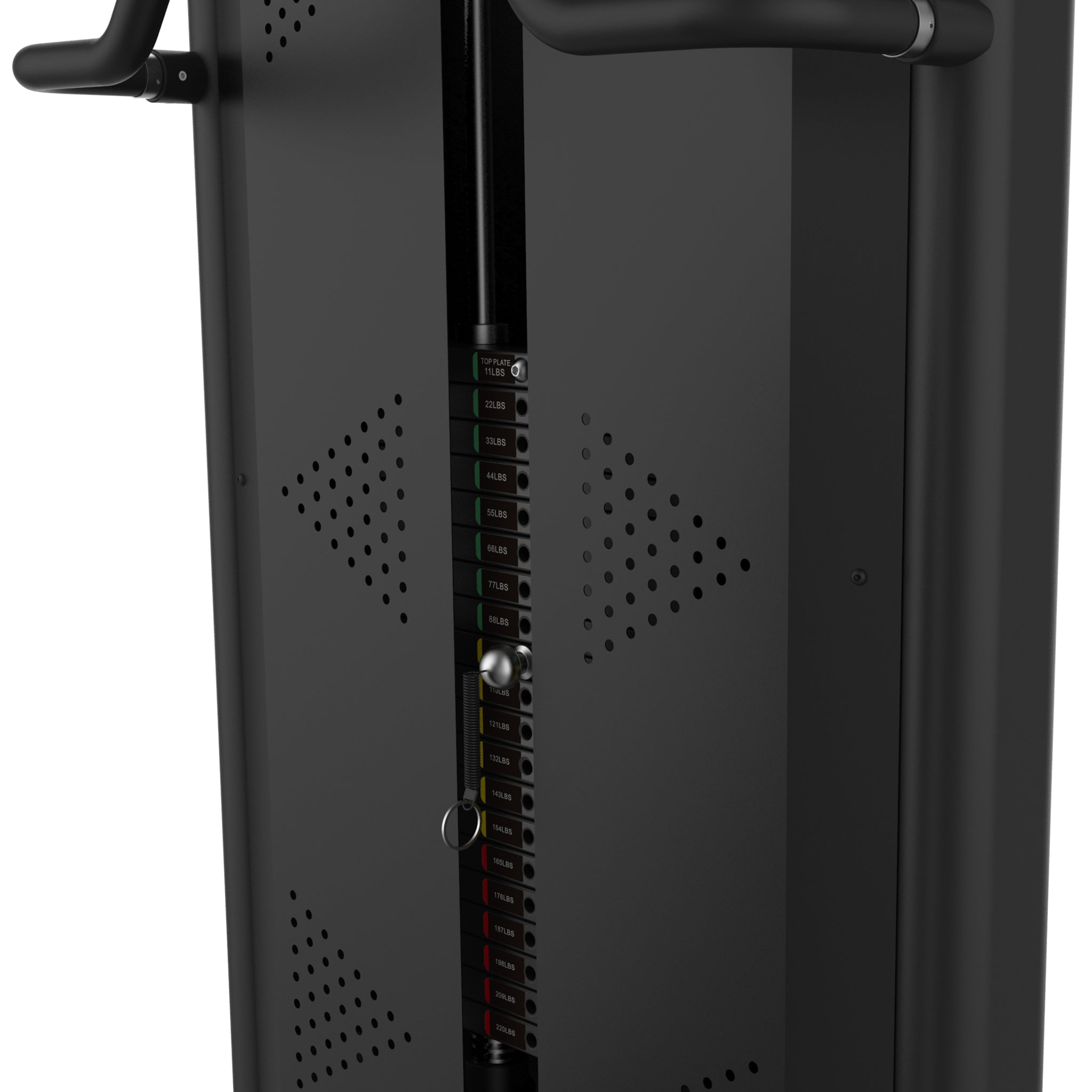

Weight Stack System

• Weight Stack: 96kg + 4.6kg Micro Adjustment

• Top Plate: 5kg

• Weight Plate: 7kg each

• Micro Weight: 2.3kg × 2

• Shock-absorbing rubber weight plates

• Ø20mm solid chrome-plated guide rods

• Cable Type: 7-Strand, 19-Wire Steel Cable

• Cable Diameter: 5.6mm

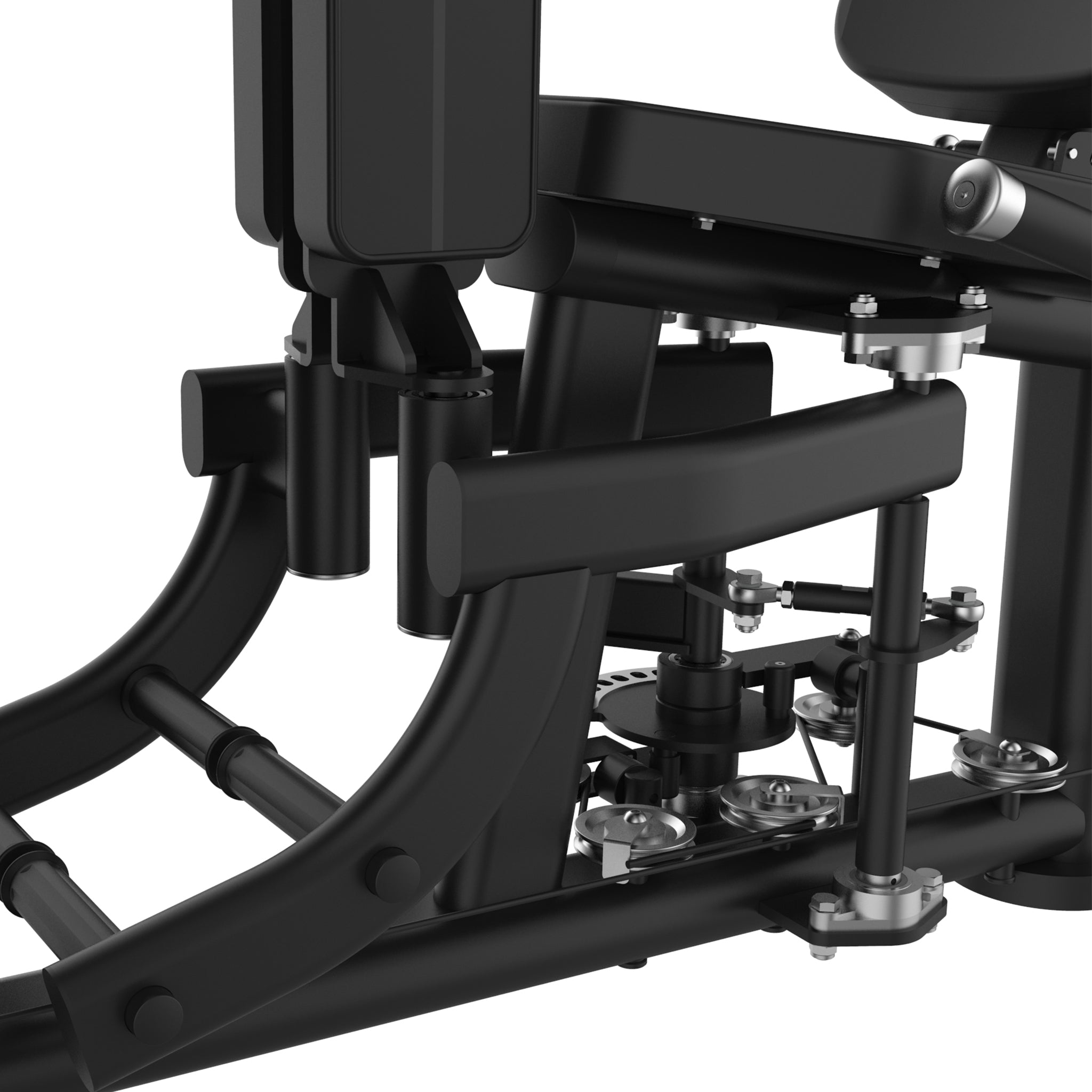

• Commercial-grade pulley transmission for smooth resistance

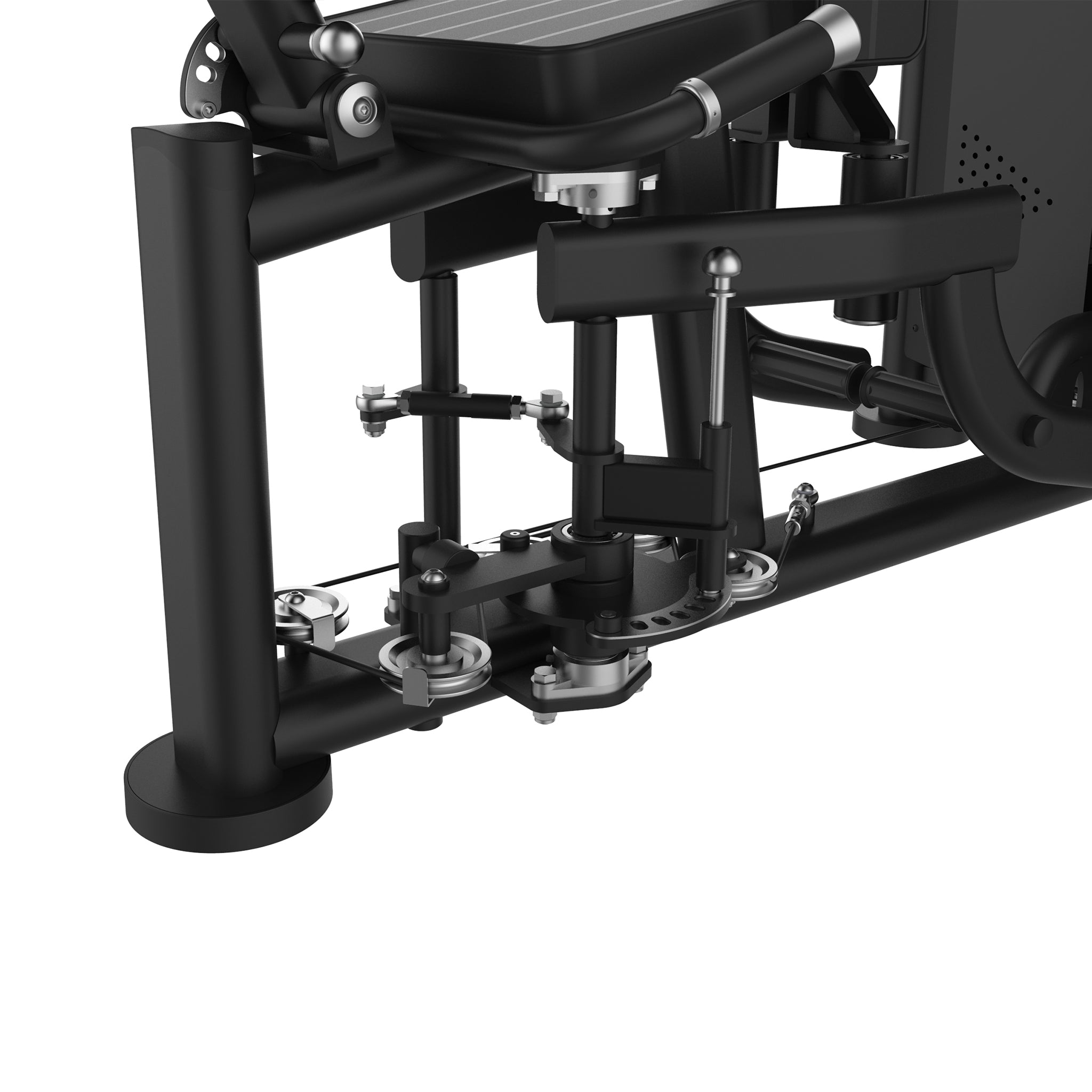

Adjustment System

• Hip Abductor Version: Hip Abduction

• Hip Abductor & Adductor Version: Hip Abduction + Hip Adduction

• Seat Height Adjustment: No

• Leg Pad Height Adjustment: No

• Starting Position Adjustment: Yes

• Adjustment Positions: 8 Positions

• Adjustment Increment: 20°

• Maximum Opening Angle: 164°

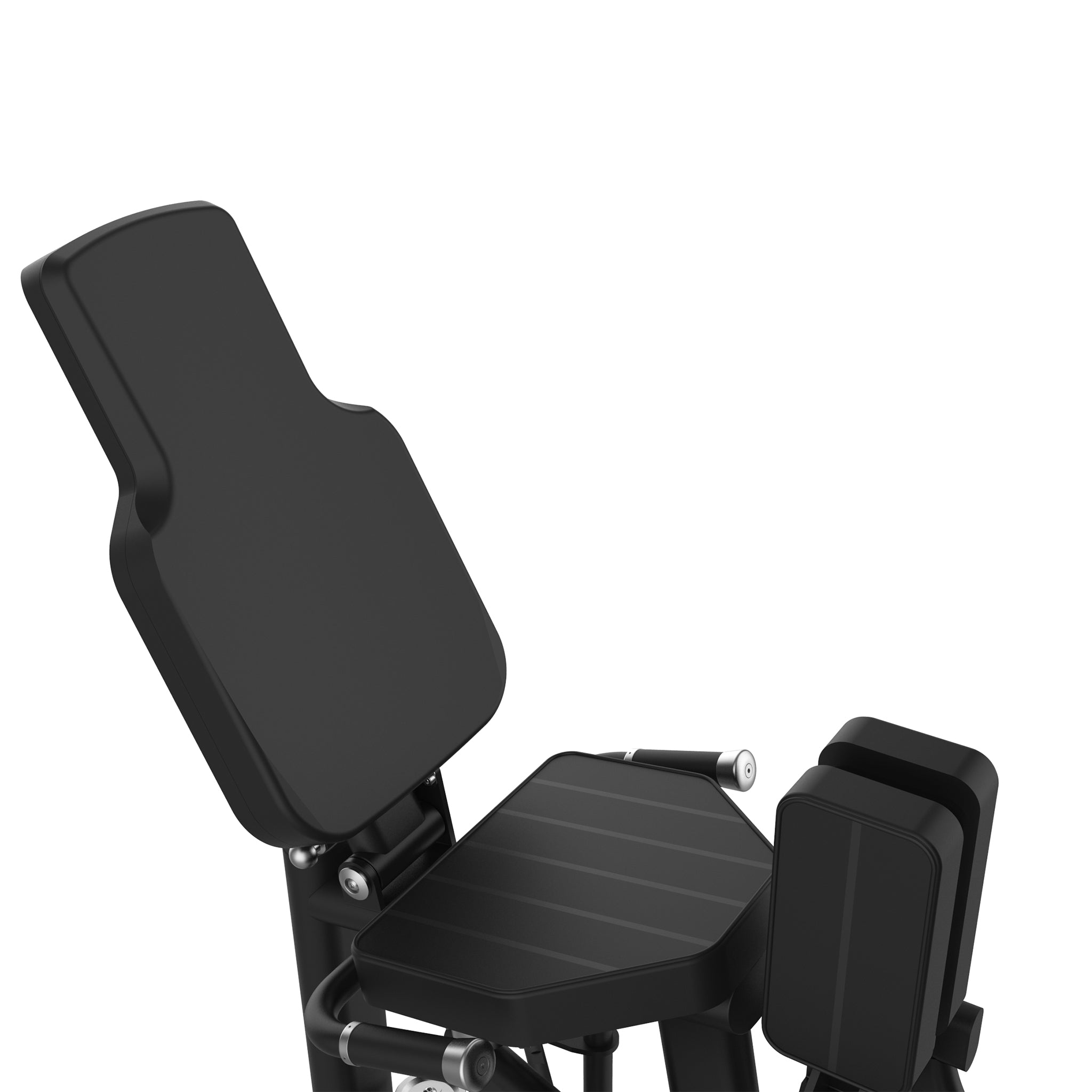

Leg Pads

• Pad Length: 270mm

• Pad Width: 200mm

• Pad Thickness: 60mm

Large ergonomic thigh pads provide comfortable support and help maintain a stable training position throughout the movement.

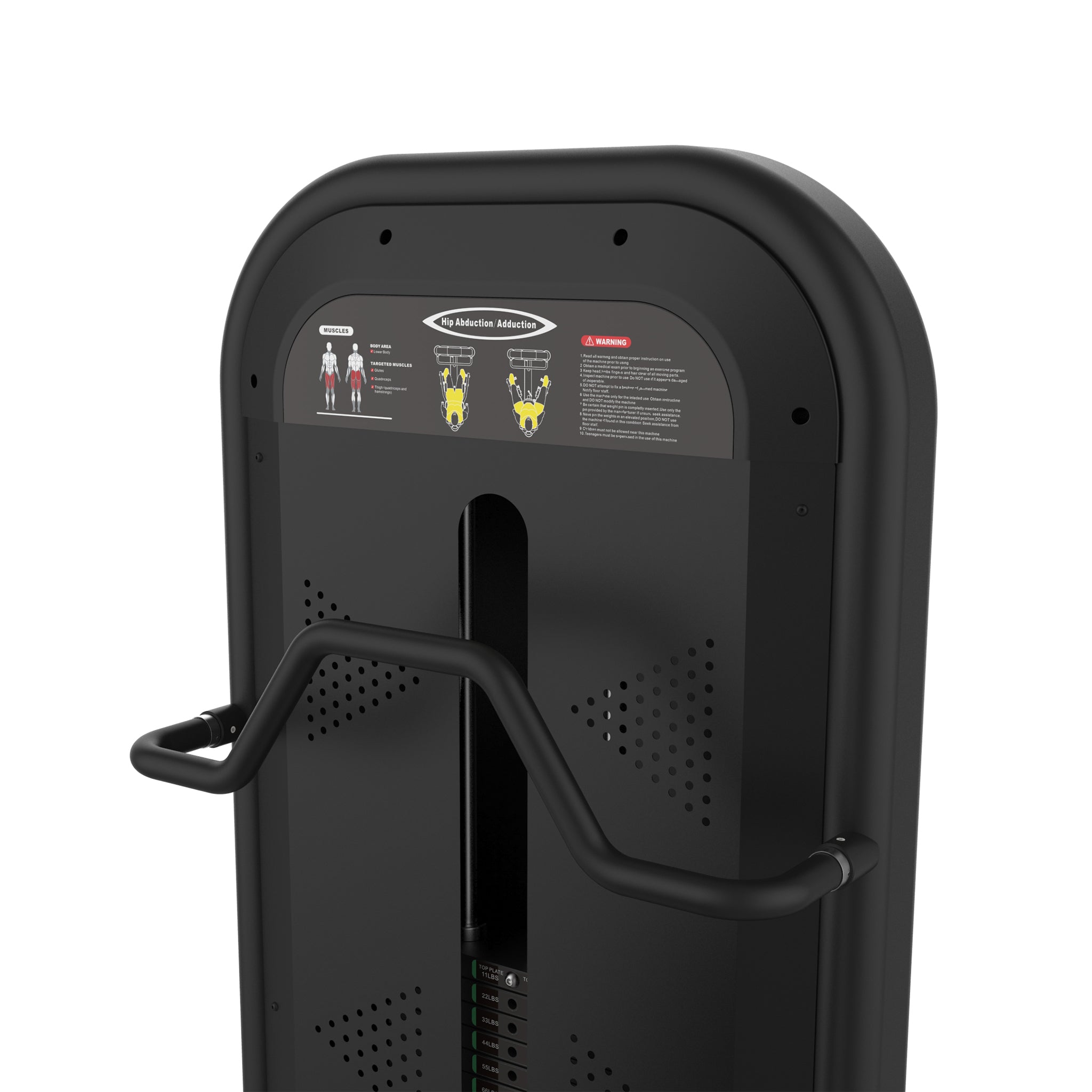

Comfort & User Features

• High-density compressed foam upholstery

• Thermoplastic PVC handles

• Dual round tube handle design

• Aluminium alloy end caps

• Aluminium alloy magnetic selector pin

Dimensions & Weight

• Product Dimensions: 1690 × 1580 × 1600mm

• Package Dimensions: 1620 × 1320 × 720mm

• Maximum User Weight: 150kg

• Net Weight: 250kg

• Gross Weight: 290kg

• Product Code: 5634

• Please click here to download the Hip Abductor & Adductor machine manual

Training Benefits

• Isolates and strengthens the hip abductors and glutes

• Abductor & Adductor version also targets the hip adductors and inner thighs

• Develops hip strength and lower-body stability

• Supports controlled lower-body movement

• Helps develop balanced hip and thigh strength

• Suitable for a wide range of training levels

Ideal For

Commercial Gyms
Fitness Clubs
Strength Training Facilities
Personal Training Studios
Sports Performance Centres
Rehabilitation Clinics
Universities & Schools
Premium Home Gyms

Warranty

Frame: 1 Year
Other Parts: 1 Year
