All-in-One Smith Machine Cable Crossover – Pin-Loaded Strength Trainer for Home & Commercial Gym 5485

This all-in-one Smith machine Cable crossover machine Pin load is built for serious strength training. Combining a power rack, functional cable system, lat pulldown, low row station, and multi-grip pull-up bar in one compact footprint, it offers everything needed for a full-body training experience.

Are all-in-one gym machines worth it?

The All-in-One Smith Machine Cable Crossover – Pin-Loaded Strength Trainer (5485) is designed to replace multiple standalone machines in one compact unit. It combines a Smith machine, functional trainer, cable crossover, lat pulldown, low row station, and multi-grip pull-up bar, supported by dual 100kg pin-loaded stacks for progressive resistance. Built from 75×75mm, 3mm thick commercial-grade steel, it offers maximum stability and long-term durability for high-frequency use. This all-in-one design not only saves space but also provides the versatility, safety, and efficiency required in home gyms, PT studios, and commercial fitness centers, making it a worthwhile investment for serious strength training.

Key Features

• Diverse Cable Stations: 2:1 cable ratio delivers explosive exercises, including Chest Press, Tricep Extensions, Bicep Curls, Cable Flys, Lat Pulldowns, and Low/High Rowing.

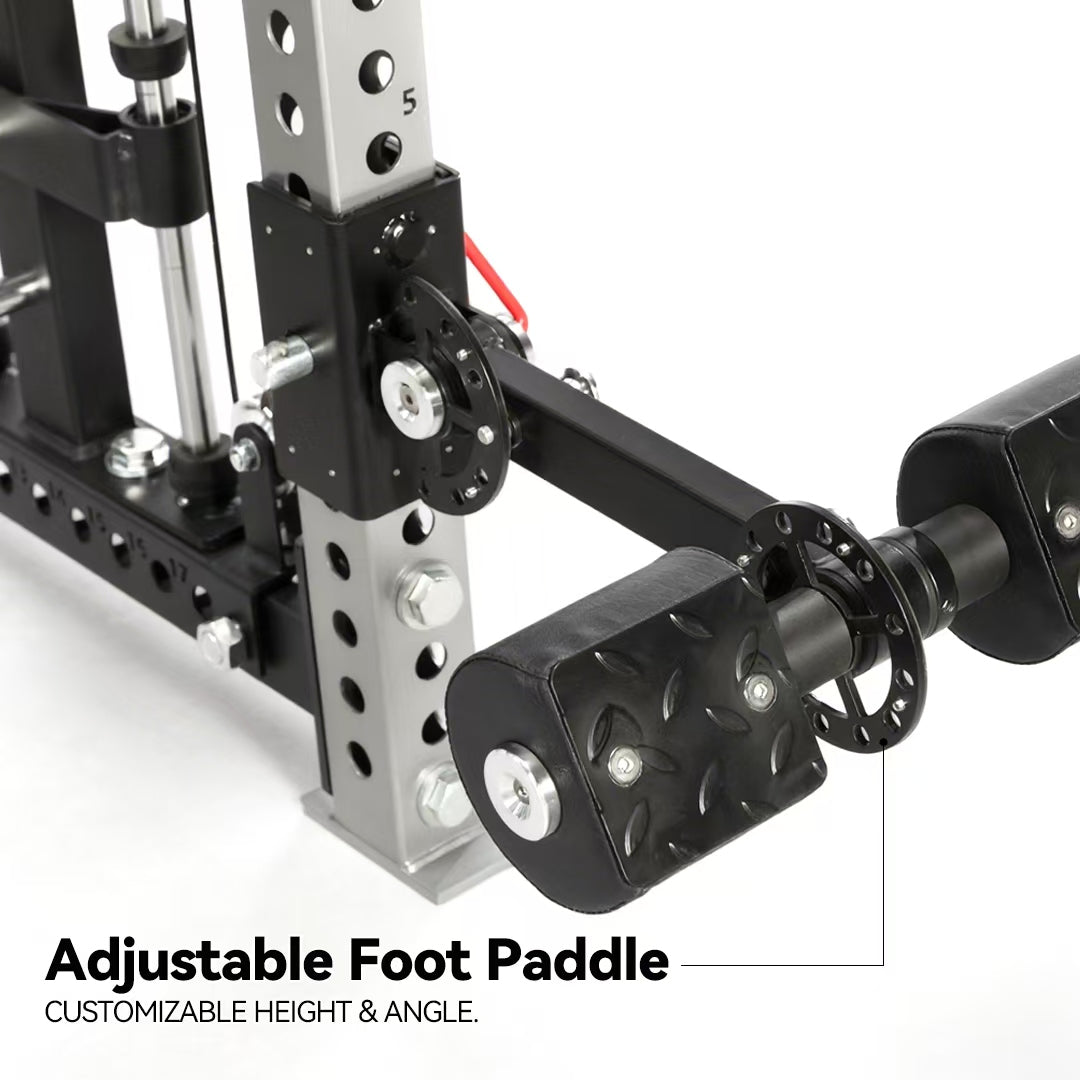

• Included Attachments: Comes with versatile attachments such as training bars, handles, chains, spring collars, Foot Plate, J-Hooks, Safety Arm, and Attachment Storage—keeping workouts varied while maximizing space.

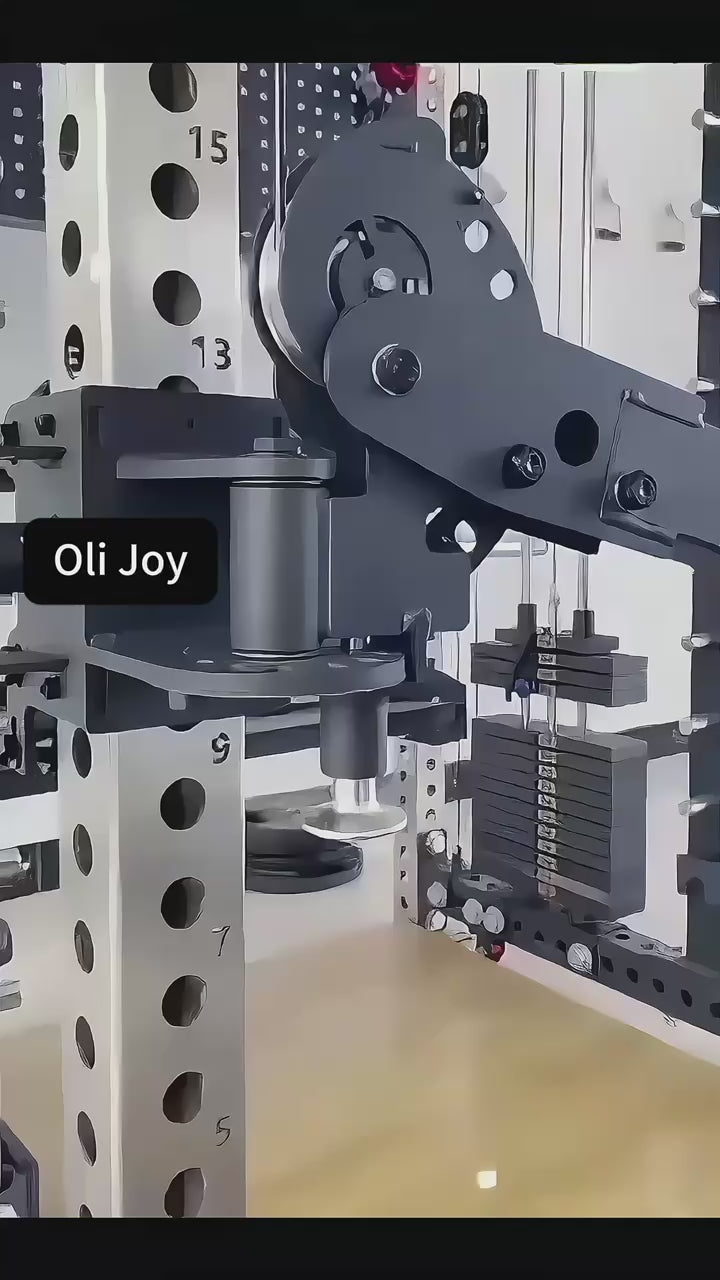

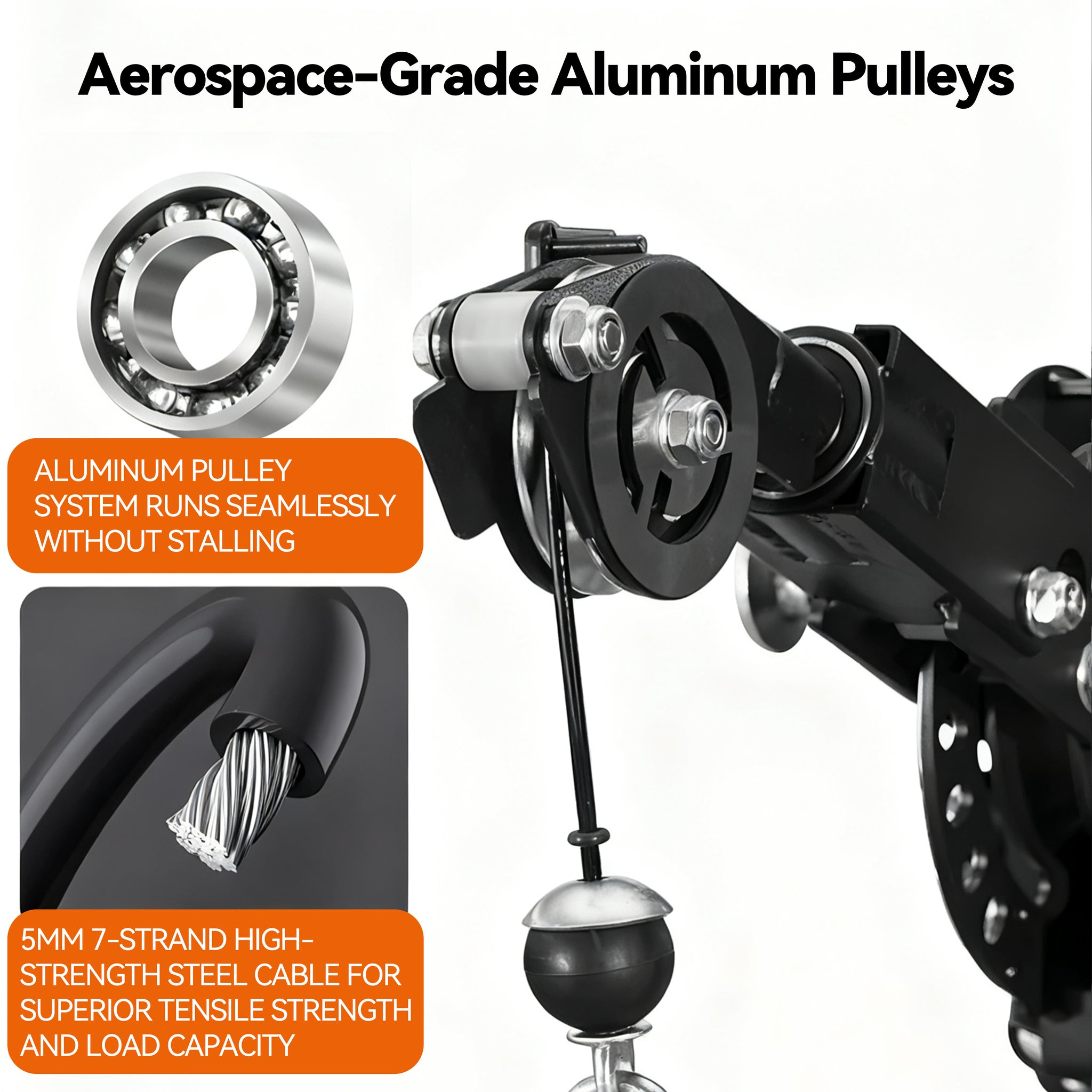

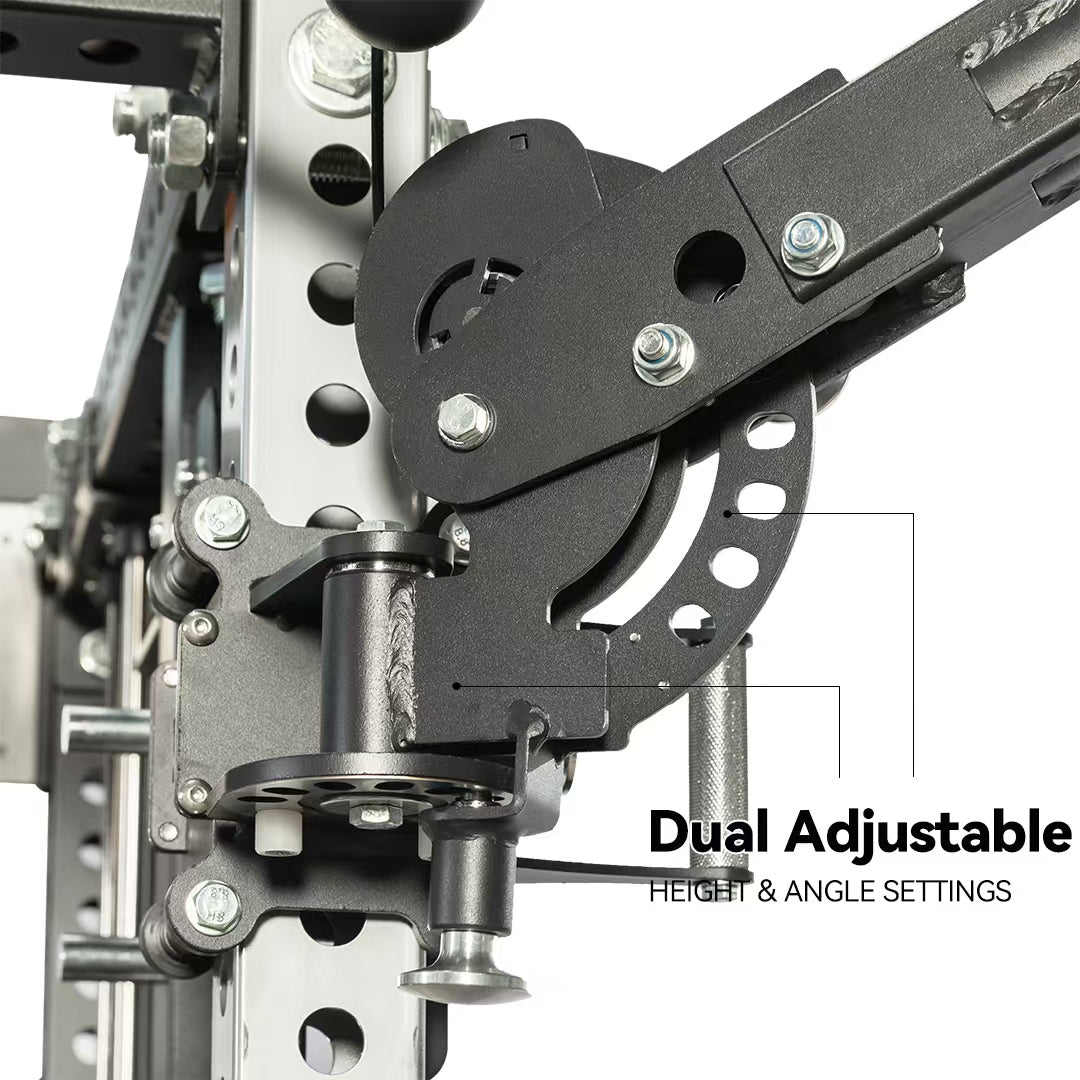

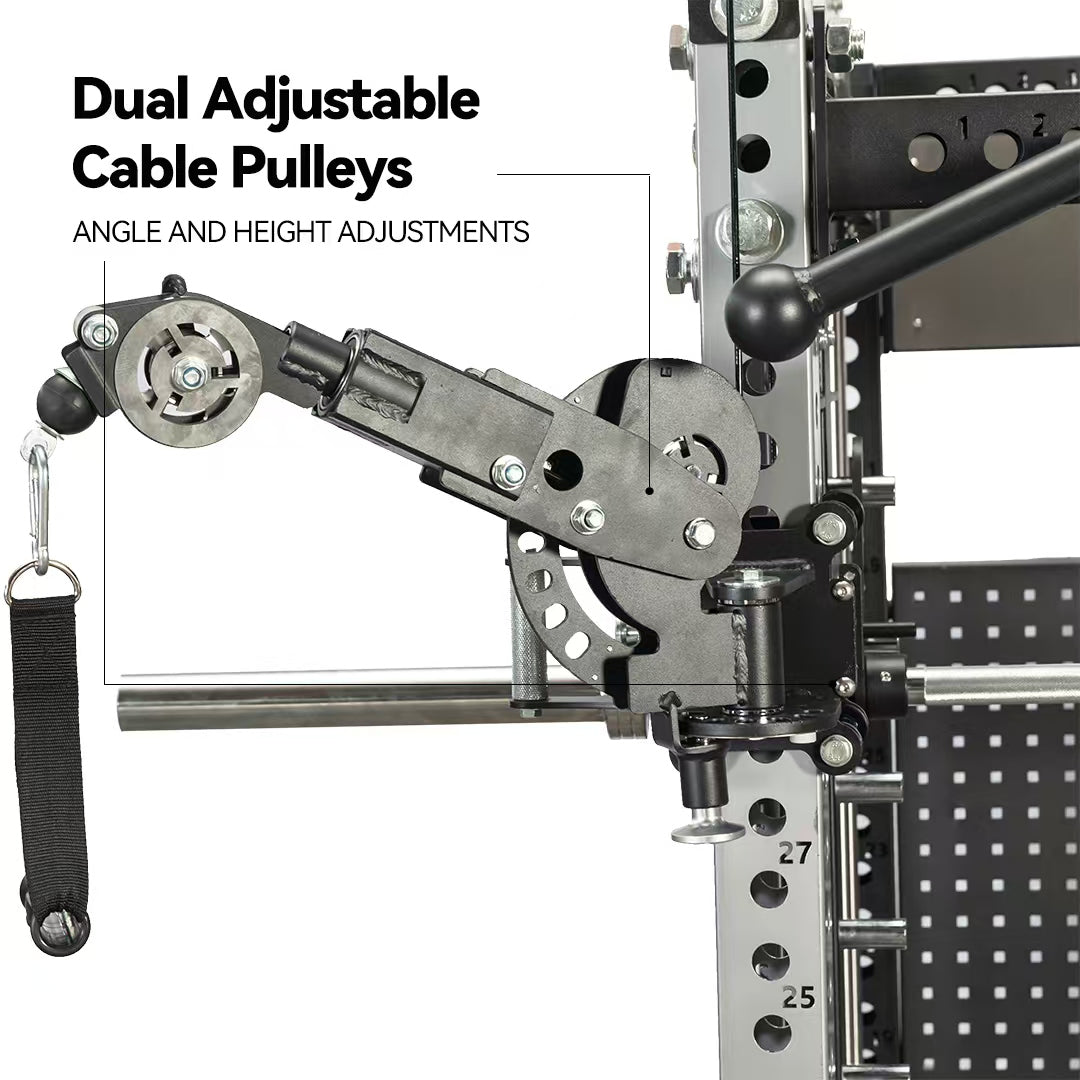

• Adjustable Pulley System: Enables multi-angle, multi-dimensional exercises like high pulldowns and low cable rows, offering enhanced flexibility for precise muscle targeting.
• Smith Machine with Adjustable Safety Stops: 13-level safety stops provide secure, customizable protection for all users, accommodating different heights.
• Multi-Grip Pull-Up Bar: Fully knurled with multiple grip positions for pull-ups, chin-ups, and a variety of upper body exercises, enhancing strength and flexibility.
• Dual Weight Stacks: 2 x 100 kg (220 lbs) pin-loaded stacks offer a total of 200 kg resistance for progressive strength training and partner workouts.
• 75x75mm Boxed Uprights: Made from GB-Q235 heavy-duty steel with 3mm thickness for maximum strength, stability, and durability. Uniform 16mm hole spacing allows versatile attachment use.
• Stable Design: Heavy-duty 565 kg frame minimizes wobble, with adjustable safety bars and J-hooks for secure barbell training.

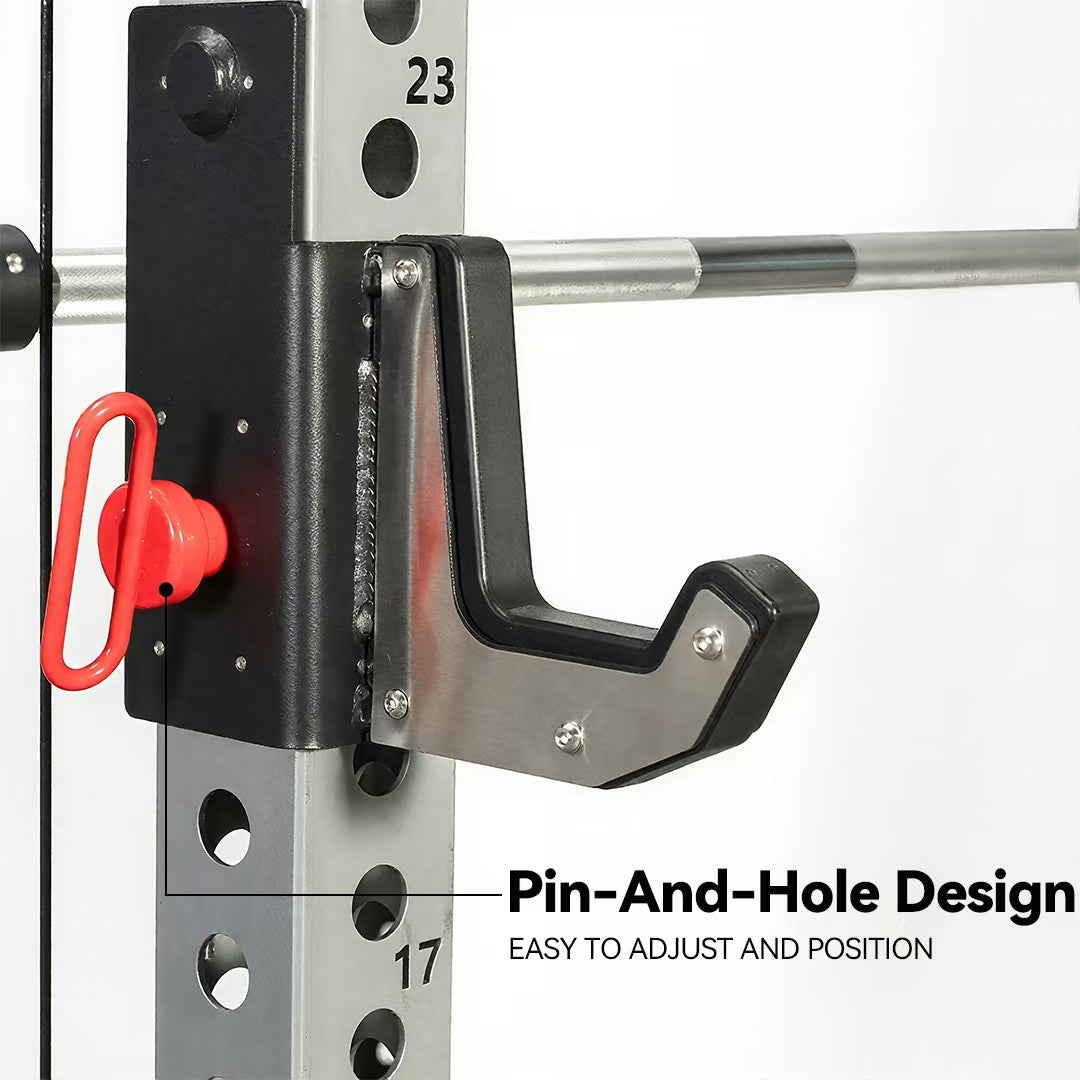

• User-Friendly Adjustment System: Numbered holes and pin-and-hole design allow quick attachment changes for flexible workouts.
• Space-Efficient All-in-One Design: Integrates a power rack, functional cable system, low row station, and multi-grip pull-up bar in one compact setup suitable for home or commercial gyms.
• Laser-Cut Precision & Universal Compatibility: 26 mm hole diameter with 50 mm spacing allows easy use with a wide range of attachments and accessories.

Specifications

• Material: GB-Q235 Commercial Steel
• Hole Diameter: 26mm
• Hole Spacing: 50mm
• Product Dimensions: 220CMm (L) × 178CM (W) × 233CM (H)
• Package Dimensions: 230CM (L) × 63CM (W) × 75CM(H)
• Product Weight: 565kg
• Package Weight: 600kg
• Weight Stack: Dual 100kg (Total 200kg), Pin-Loaded
• Colour: Black
• Barcode: 5485
